IKO CFKR52VR

Double Hex Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

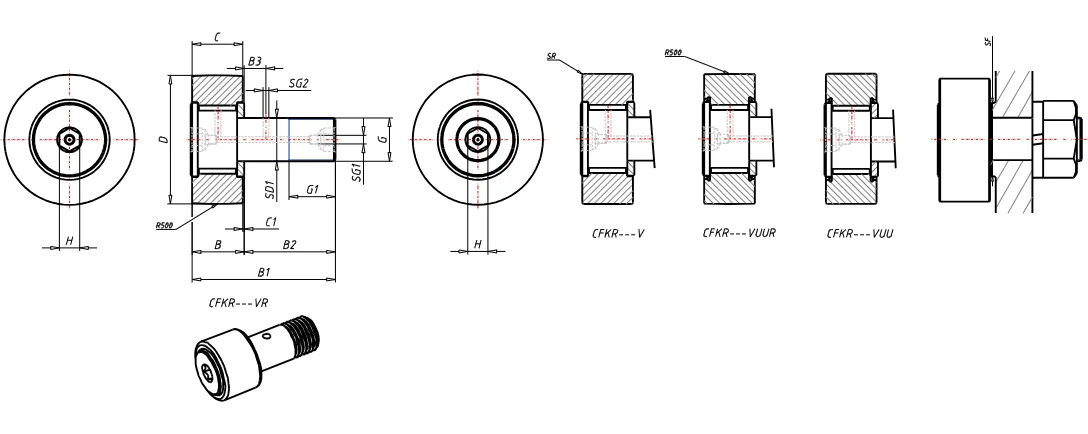

Detailed data of

CFKR52VR

Order number CFKR52VR
Stud Diameter 20 mm
Outer Diameter 52 mm
Width 24 mm
Stud Diameter 20 mm
Thread M20x1.5
Length 21 mm
Maximum width 25.6 mm
Max.Total length 66.1 mm
Length 40.5 mm
Dimension 9 mm
Dimension 0.8 mm
Diameter 6 mm
Diameter 4 mm
Dimension 10 mm
rs min 1.0 mm
Min.Dimension related to the installation 34 mm
Maximum tightening torque 119.0 Nm
Basic dynamic load rating 33200 N
Basic static load rating 64500 N
Max.Static allowable load 37500 N
Mass 458 g
