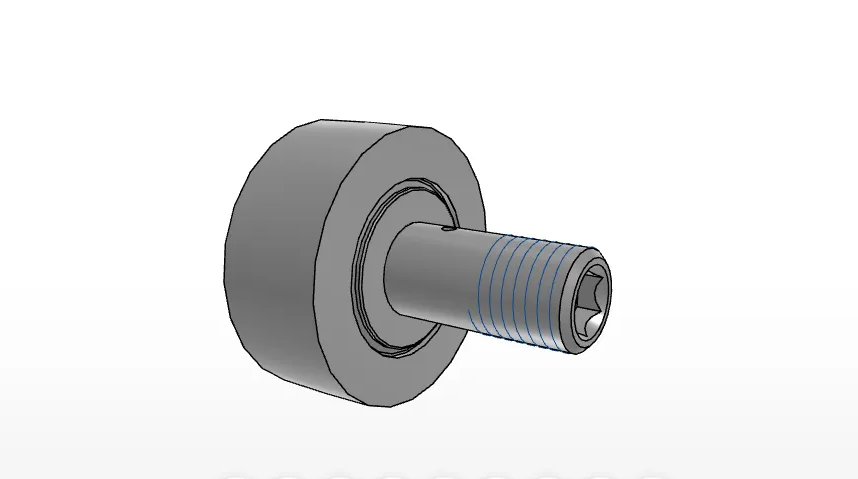

IKO CFKR72UUR

Double Hex Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

CFKR72UUR

Order number CFKR72UUR
Stud Diameter 24 mm
Outer Diameter 72 mm
Width 29 mm
Stud Diameter 24 mm
Thread M24x1.5
Length 25.0 mm
Maximum width 30.6 mm
Max.Total length 80.1 mm
Length 49.5 mm
Dimension 11 mm
Dimension 0.8 mm
Diameter 6 mm
Diameter 4 mm
Dimension 14.0 mm
rs min - mm
Min.Dimension related to the installation 40.0 mm
Maximum tightening torque 215.00 Nm
Basic dynamic load rating 30500 N
Basic static load rating 52600 N
Max.Static allowable load 52000 N
Mass 1120.0 g
