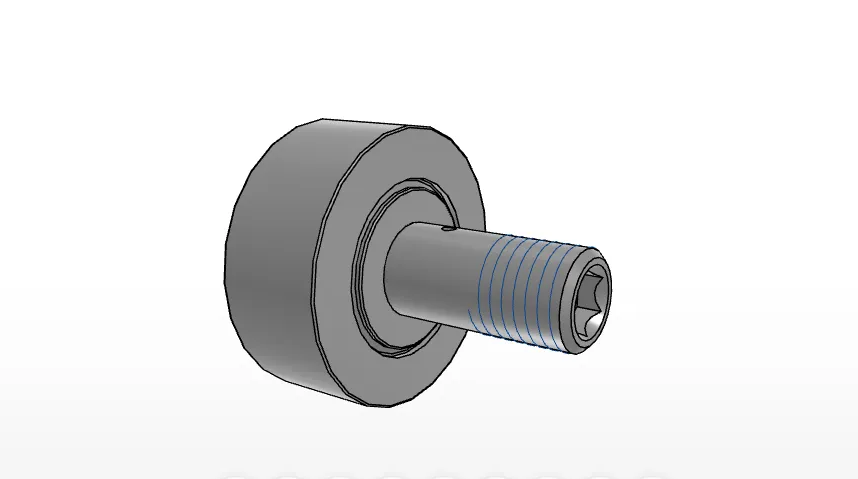

IKO CFKR72VUU

Double Hex Metric Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

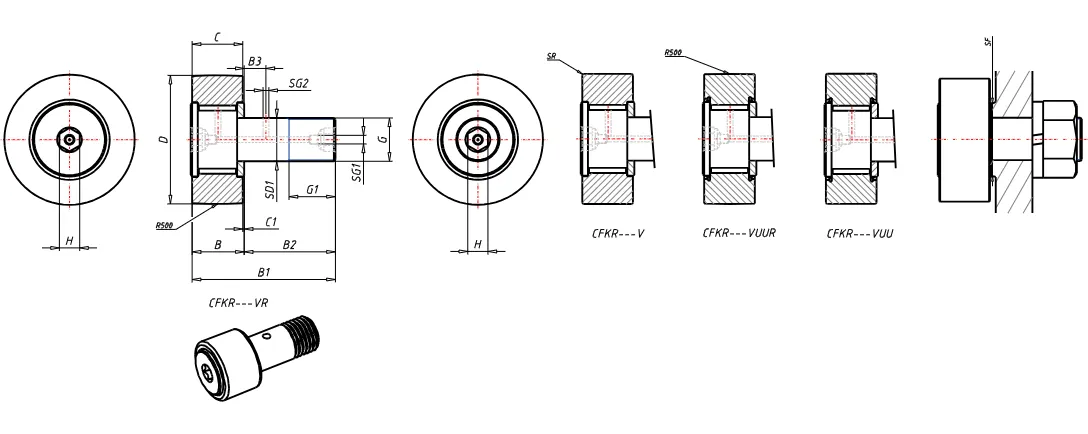

Detailed data of

CFKR72VUU

Order number CFKR72VUU
Stud Diameter 24 mm
Outer Diameter 72 mm
Width 29 mm
Stud Diameter 24 mm
Thread M24x1.5
Length 25 mm
Maximum width 30.6 mm
Max.Total length 80.1 mm
Length 49.5 mm
Dimension 11 mm
Dimension 0.8 mm
Diameter 6 mm
Diameter 4 mm
Dimension 14 mm
rs min 1.0 mm
Min.Dimension related to the installation 40 mm
Maximum tightening torque 215.0 Nm
Basic dynamic load rating 46600 N
Basic static load rating 92000 N
Max.Static allowable load 52000 N
Mass 1120 g
