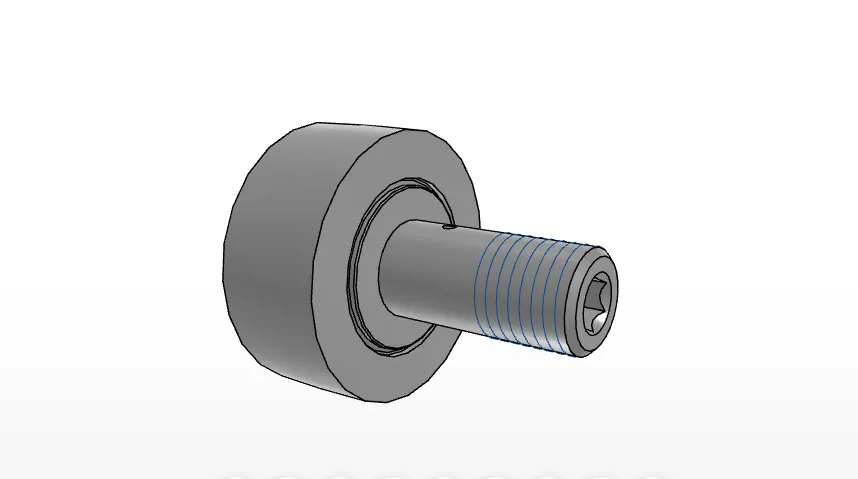

IKO CFKR85UUR
Double Hex Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order number
CFKR85UUR
Stud Diameter
30
mm
Outer Diameter
85
mm
Width
35
mm
Stud Diameter
30
mm
Thread
M30x1.5
Length
32.0
mm
Maximum width
37.0
mm
Max.Total length
100.0
mm
Length
63.0
mm
Dimension
15
mm
Dimension
1.0
mm
Diameter
6
mm
Diameter
4
mm
Dimension
14.0
mm
rs min
-
mm
Min.Dimension related to the installation
49.0
mm
Maximum tightening torque
438.00
Nm
Basic dynamic load rating
45400
N
Basic static load rating
85100
N
Max.Static allowable load
85100
N
Mass
2020.0
g
