IKO CFKRE22VUUR

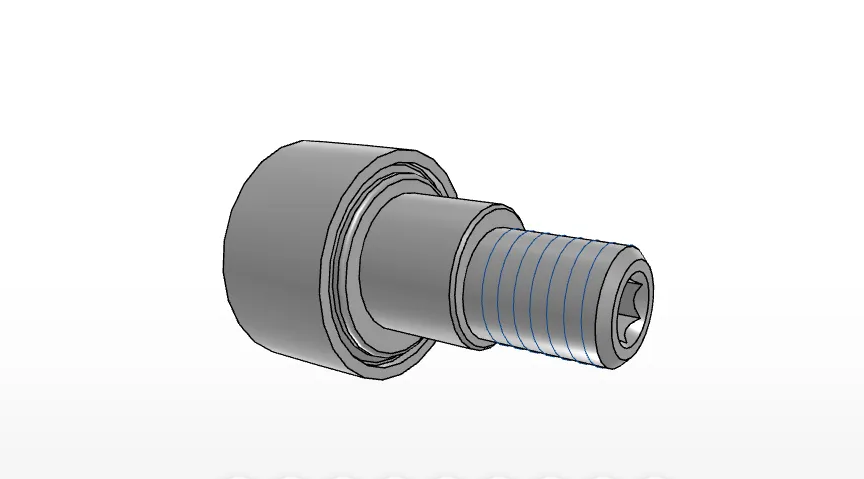

Eccentric Collar Double Hex Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

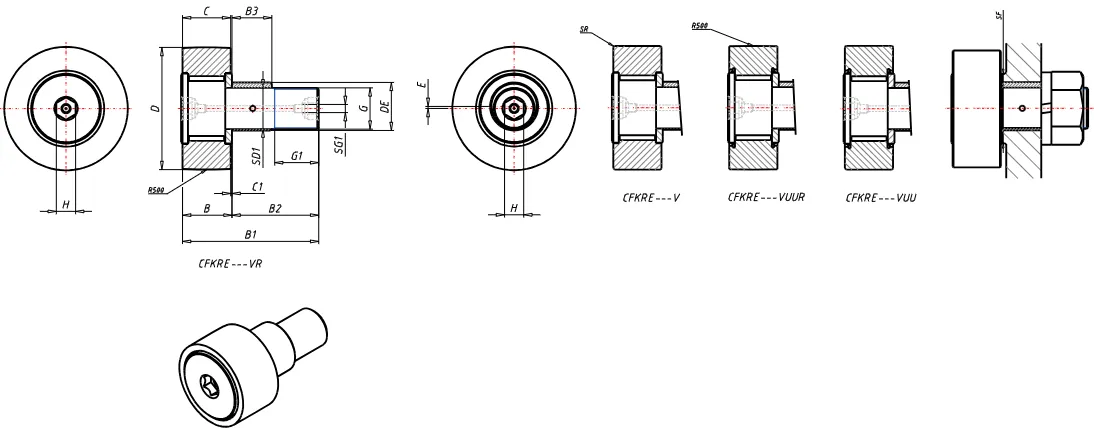

Detailed data of

CFKRE22VUUR

Order number CFKRE22VUUR
Eccentric collar diameter 13 mm
Outer Diameter 22 mm
Width 12 mm
Thread M10X1.0 Length
12 mm
Maximum width 13.2 mm
Max.Total length 36.2 mm
Length 23.0 mm
Eccentric collar length 10 mm
Dimension 0.6 mm
Diameter 3.5 mm
Dimension 5 mm
rs min 0.3 mm
Eccentricity 0.5 mm
Min.Dimension related to the installation 16 mm
Maximum tightening torque 13.0 Nm
Basic dynamic load rating 9570 N
Basic static load rating 14500 N
Max.Static allowable load 7920 N
Mass 48 g
