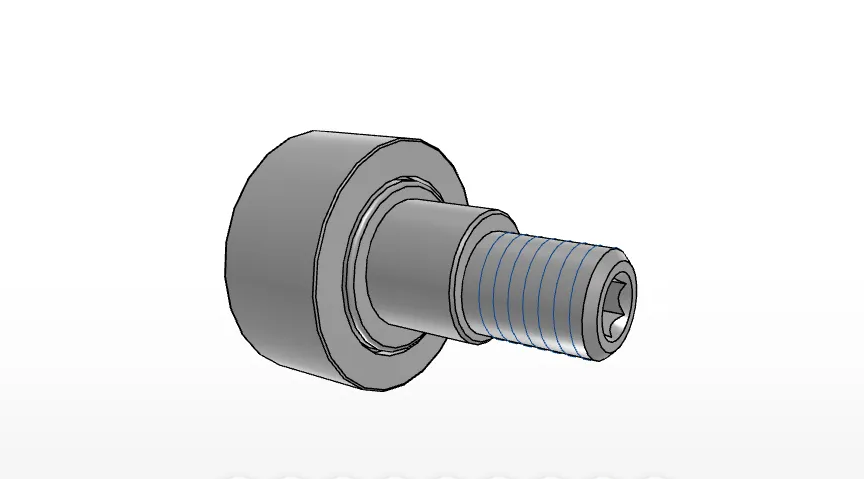

IKO CFKRE26

Eccentric Collar Double Hex Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

CFKRE26

Eccentric collar diameter 13 mm
Order number CFKRE26
Outer Diameter 26 mm
Width 12 mm
Thread M10X1.0 Length
12.0 mm
Maximum width 13.2 mm
Max.Total length 36.2 mm
Length 23.0 mm
Eccentric collar length 10 mm
Dimension 0.6 mm
Diameter 3.5 mm
Dimension 5.0 mm
rs min 0.3 mm
Eccentricity 0.5 mm
Min.Dimension related to the installation 16.0 mm
Maximum tightening torque 13.00 Nm
Basic dynamic load rating 5430 N
Basic static load rating 6890 N
Max.Static allowable load 6890 N
Mass 62.0 g
