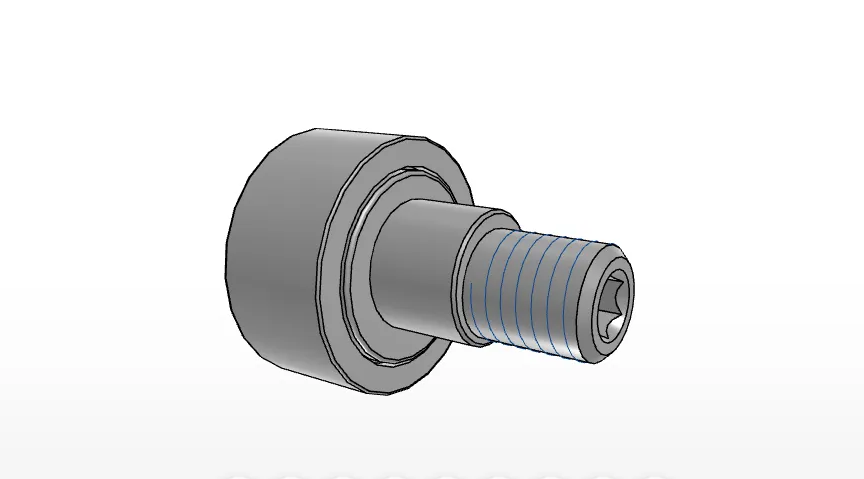

IKO CFKRE30

Eccentric Collar Double Hex Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

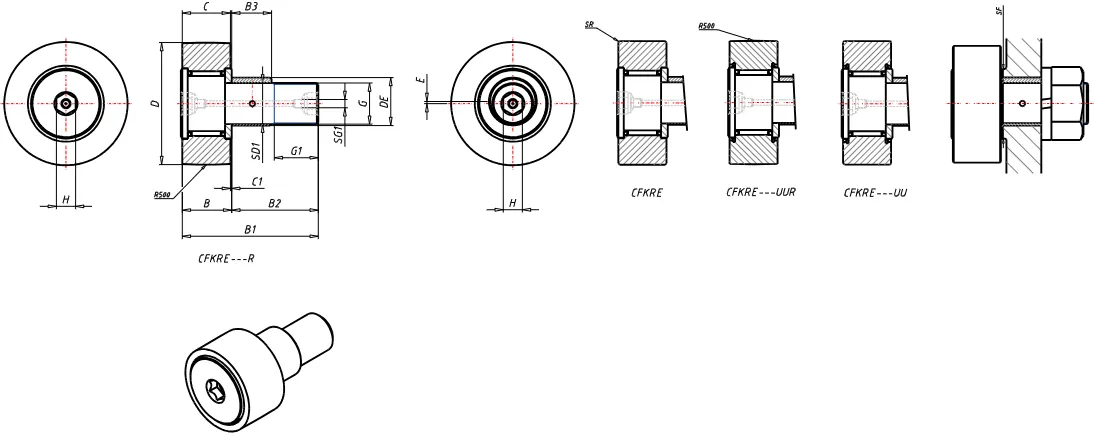

Detailed data of

CFKRE30

Eccentric collar diameter 15 mm
Order number CFKRE30
Outer Diameter 30 mm
Width 14 mm
Thread M12x1.5 Length
13.0 mm
Maximum width 15.2 mm
Max.Total length 40.2 mm
Length 25.0 mm
Eccentric collar length 11 mm
Dimension 0.6 mm
Diameter 4 mm
Dimension 6.0 mm
rs min 0.6 mm
Eccentricity 0.5 mm
Min.Dimension related to the installation 21.0 mm
Maximum tightening torque 21.90 Nm
Basic dynamic load rating 7910 N
Basic static load rating 9790 N
Max.Static allowable load 9790 N
Mass 100.0 g
