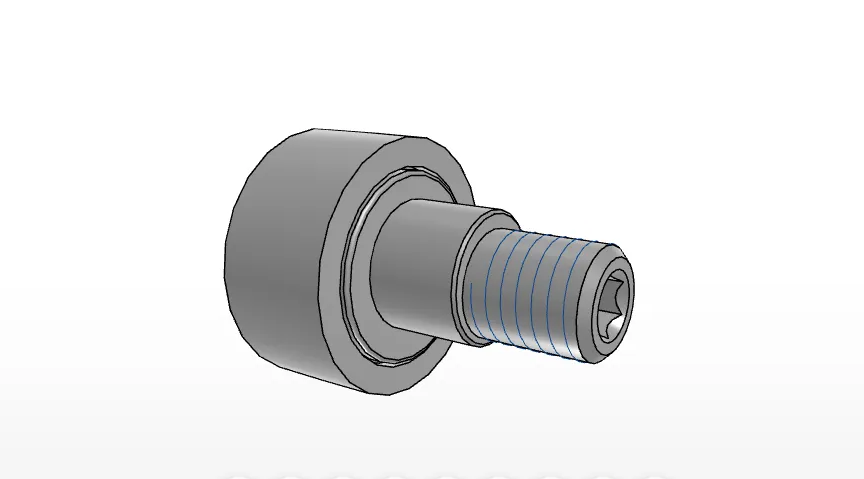

IKO CFKRE30VR

Eccentric Collar Double Hex Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

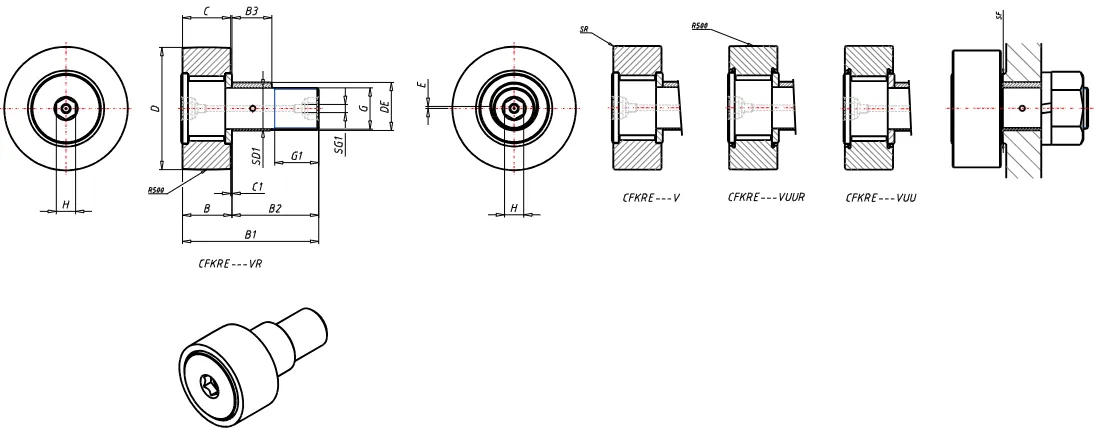

Detailed data of

CFKRE30VR

Order number CFKRE30VR
Eccentric collar diameter 15 mm
Outer Diameter 30 mm
Width 14 mm
Thread M12x1.5 Length
13 mm
Maximum width 15.2 mm
Max.Total length 40.2 mm
Length 25.0 mm
Eccentric collar length 11 mm
Dimension 0.6 mm
Diameter 4 mm
Dimension 6 mm
rs min 0.6 mm
Eccentricity 0.5 mm
Min.Dimension related to the installation 21 mm
Maximum tightening torque 21.9 Nm
Basic dynamic load rating 13500 N
Basic static load rating 19700 N
Max.Static allowable load 13200 N
Mass 101 g
