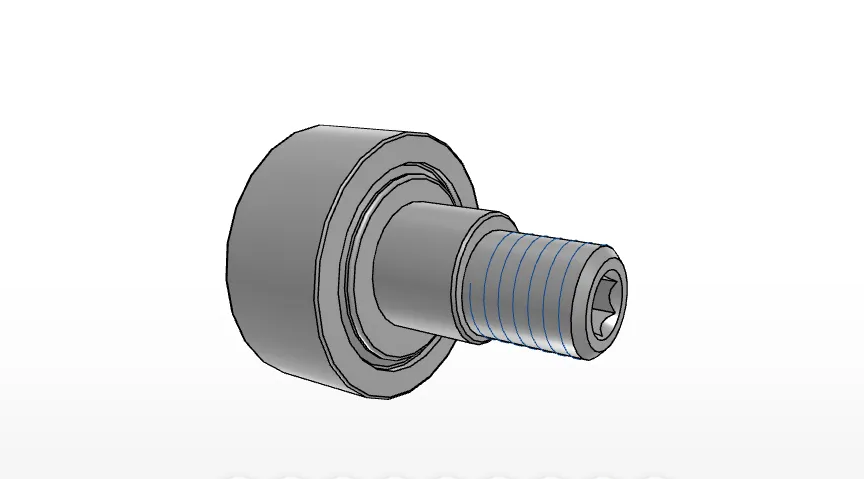

IKO CFKRE32UU
Cam Followers
Eccentric Collar Double Hex Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com
REQUEST A QUOTE

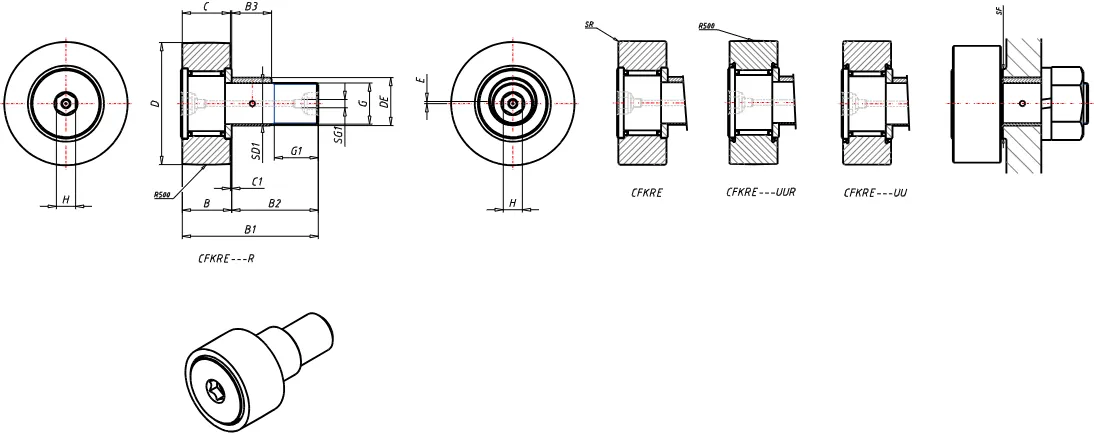

Detailed data of Product
similar to product
Detailed data of
CFKRE32UU
Cam Followers
Eccentric collar diameter
15
mm
Order number
CFKRE32UU
Outer Diameter
32
mm
Width
14
mm
Thread
M12x1.5
Length
13.0
mm
Maximum width
15.2
mm
Max.Total length
40.2
mm
Length
25.0
mm
Eccentric collar length
11
mm
Dimension
0.6
mm
Diameter
4
mm
Dimension
6.0
mm
rs min
0.6
mm
Eccentricity
0.5
mm
Min.Dimension related to the installation
21.0
mm
Maximum tightening torque
21.90
Nm
Basic dynamic load rating
7910
N
Basic static load rating
9790
N
Max.Static allowable load
9790
N
Mass
110.0
g
