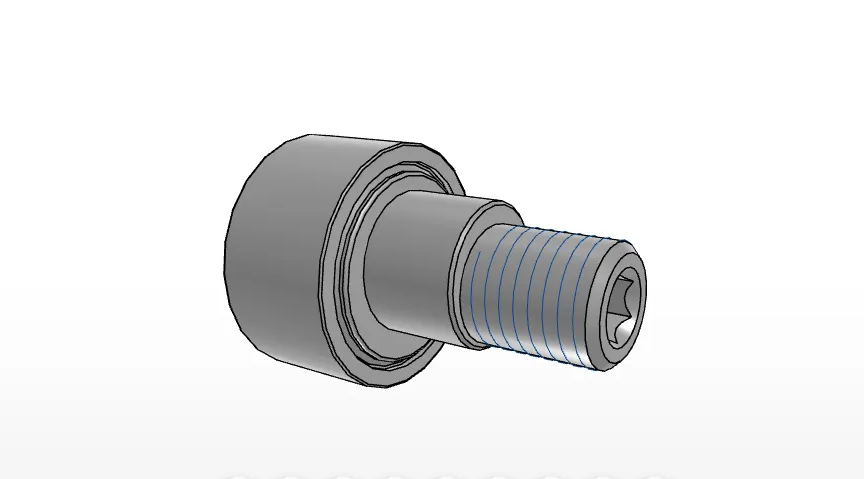

IKO CFKRE35VUU
Cam Followers
Eccentric Collar Double Hex Metric Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com
REQUEST A QUOTE

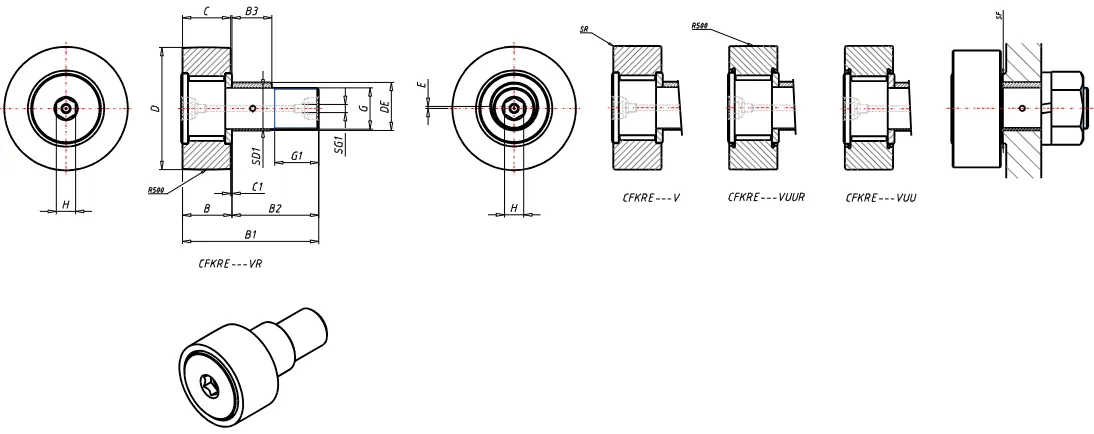

Detailed data of Product
similar to product
Detailed data of
CFKRE35VUU
Cam Followers
Order number
CFKRE35VUU
Eccentric collar diameter
20
mm
Outer Diameter
35
mm
Width
18
mm
Thread
M16x1.5
Length
17
mm
Maximum width
19.6
mm
Max.Total length
52.1
mm
Length
32.5
mm
Eccentric collar length
14
mm
Dimension
0.8
mm
Diameter
4
mm
Dimension
8
mm
rs min
0.6
mm
Eccentricity
1.0
mm
Min.Dimension related to the installation
26
mm
Maximum tightening torque
58.5
Nm
Basic dynamic load rating
20700
N
Basic static load rating
37600
N
Max.Static allowable load
23200
N
Mass
180
g
