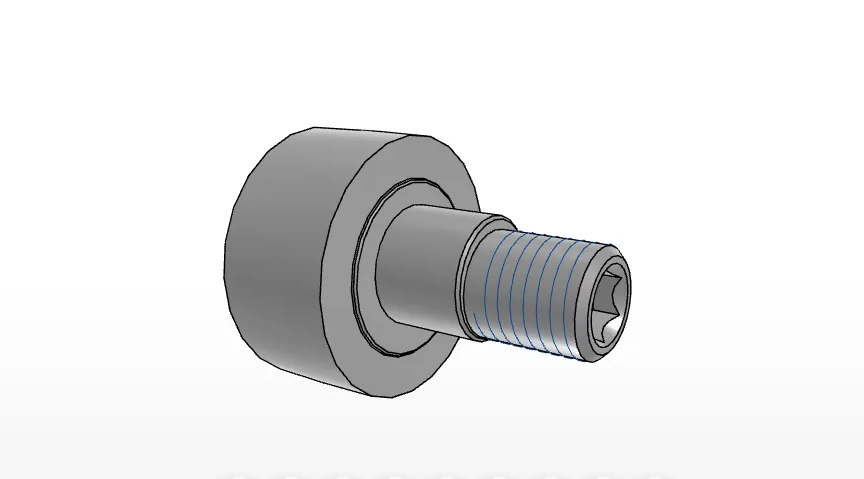

IKO CFKRE62VR

Eccentric Collar Double Hex Metric Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

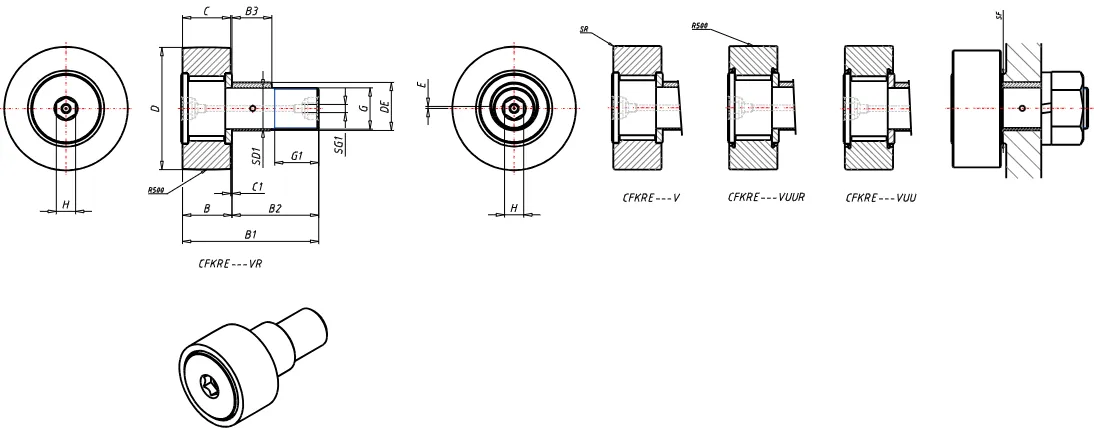

Detailed data of

CFKRE62VR

Order number CFKRE62VR
Eccentric collar diameter 28 mm
Outer Diameter 62 mm
Width 29 mm
Thread M24x1.5 Length
25 mm
Maximum width 30.6 mm
Max.Total length 80.1 mm
Length 49.5 mm
Eccentric collar length 22 mm
Dimension 0.8 mm
Diameter 6 mm
Dimension 14 mm
rs min 1.0 mm
Eccentricity 1.0 mm
Min.Dimension related to the installation 40 mm
Maximum tightening torque 215.0 Nm
Basic dynamic load rating 46600 N
Basic static load rating 92000 N
Max.Static allowable load 52000 N
Mass 828 g
