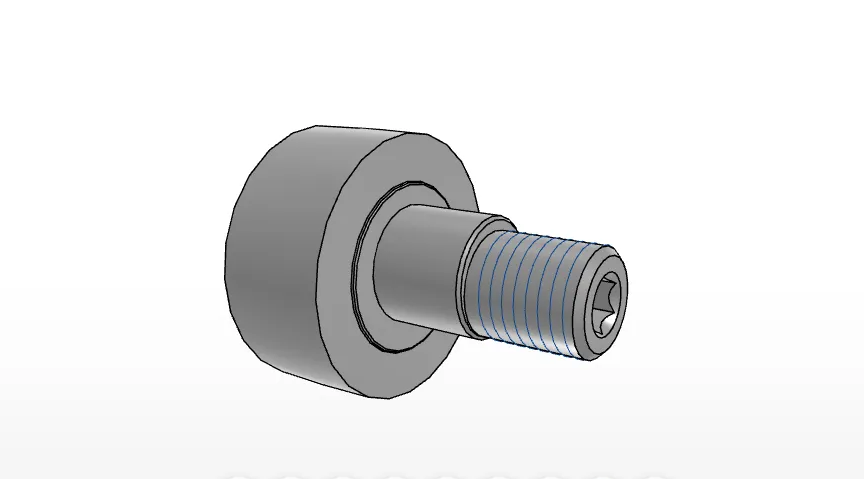

IKO CFKRE80R

Eccentric Collar Double Hex Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

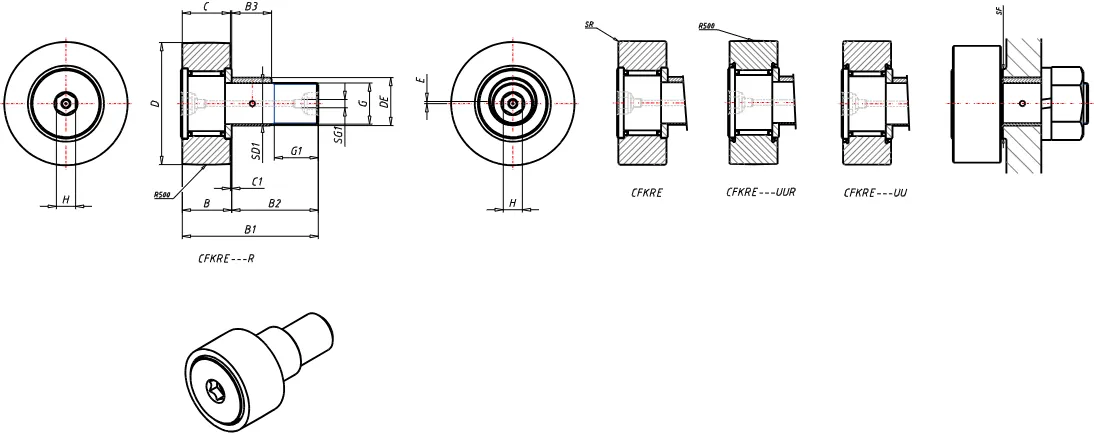

Detailed data of

CFKRE80R

Eccentric collar diameter 35 mm
Order number CFKRE80R
Outer Diameter 80 mm
Width 35 mm
Thread M30x1.5 Length
32.0 mm
Maximum width 37.0 mm
Max.Total length 100.0 mm
Length 63.0 mm
Eccentric collar length 29 mm
Dimension 1.0 mm
Diameter 6 mm
Dimension 14.0 mm
rs min - mm
Eccentricity 1.5 mm
Min.Dimension related to the installation 49.0 mm
Maximum tightening torque 438.00 Nm
Basic dynamic load rating 45400 N
Basic static load rating 85100 N
Max.Static allowable load 85100 N
Mass 1920.0 g
