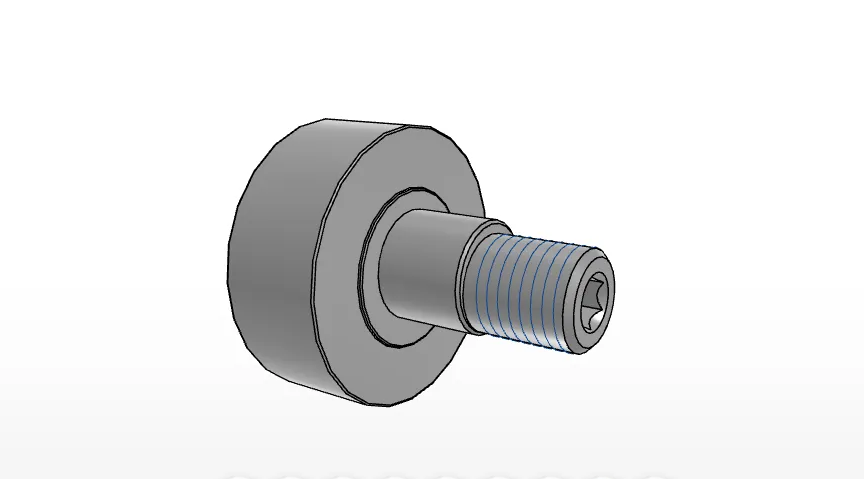

IKO CFKRE90

Eccentric Collar Double Hex Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

Detailed data of

CFKRE90

Eccentric collar diameter 35 mm
Order number CFKRE90
Outer Diameter 90 mm
Width 35 mm
Thread M30x1.5 Length
32.0 mm
Maximum width 37.0 mm
Max.Total length 100.0 mm
Length 63.0 mm
Eccentric collar length 29 mm
Dimension 1.0 mm
Diameter 6 mm
Dimension 14.0 mm
rs min 1 mm
Eccentricity 1.5 mm
Min.Dimension related to the installation 49.0 mm
Maximum tightening torque 438.00 Nm
Basic dynamic load rating 45400 N
Basic static load rating 85100 N
Max.Static allowable load 85100 N
Mass 2270.0 g
