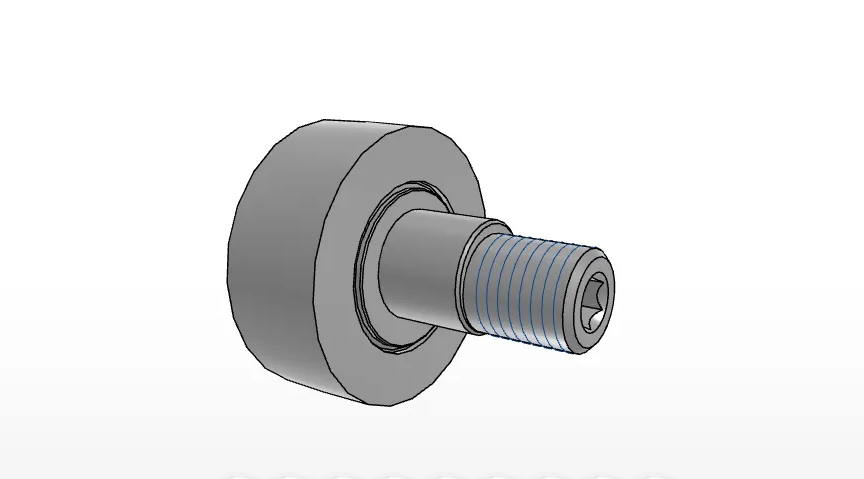

IKO CFKRE90UUR
Cam Followers
Eccentric Collar Double Hex Metric Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com
REQUEST A QUOTE
Detailed data of Product
similar to product
Detailed data of
CFKRE90UUR
Cam Followers
Eccentric collar diameter
35
mm
Order number
CFKRE90UUR
Outer Diameter
90
mm
Width
35
mm
Thread
M30x1.5
Length
32.0
mm
Maximum width
37.0
mm
Max.Total length
100.0
mm
Length
63.0
mm
Eccentric collar length
29
mm
Dimension
1.0
mm
Diameter
6
mm
Dimension
14.0
mm
rs min
-
mm
Eccentricity
1.5
mm
Min.Dimension related to the installation
49.0
mm
Maximum tightening torque
438.00
Nm
Basic dynamic load rating
45400
N
Basic static load rating
85100
N
Max.Static allowable load
85100
N
Mass
2270.0
g
