IKO CFRU110
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,

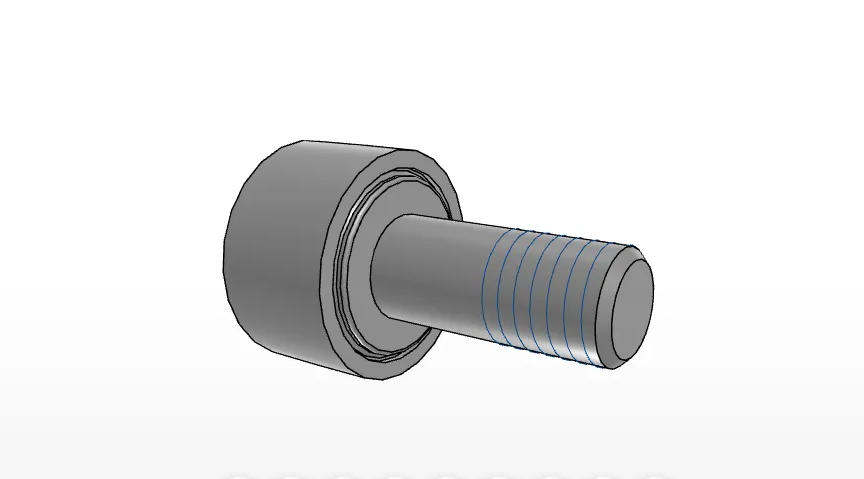

IKO CFRU110 Cam Follower Overview
The IKO CFRU110 is part of the IKO Cam Followers series and is listed under the order number CF-RU1-10. The product data identifies it as a centralized lubrication cam follower with a caged internal structure, high carbon steel construction, crowned outer ring, shielded arrangement, and screw driver slot.
What bearing type and material are specified for the CFRU110?
The supplied data classifies the CFRU110 as a Cam Follower with a Cage Type internal structure. Its listed bearing material is High Carbon Steel.

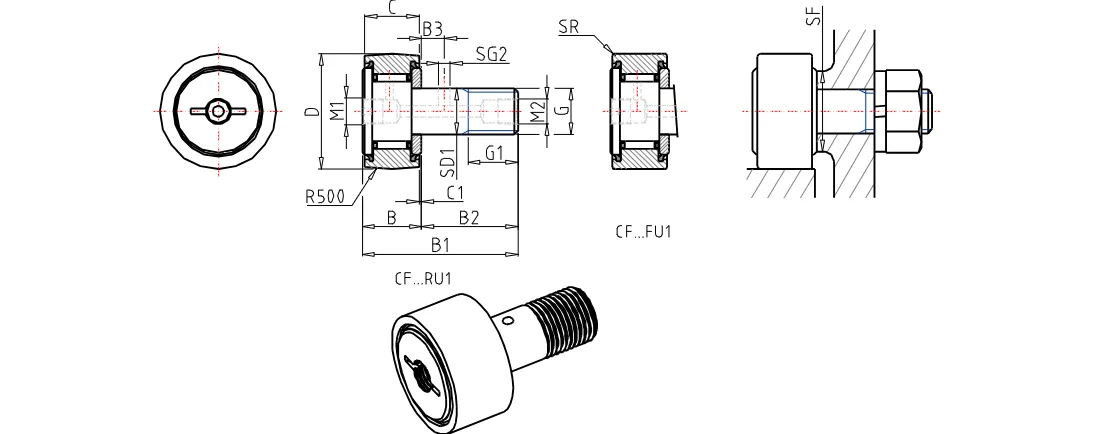

CFRU110 Dimensions and Installation Data
The IKO CFRU110 has an outer diameter of 22 mm, width of 12 mm, and stud diameter of 10 mm. Additional listed measurements include a maximum width of 13.2 mm, maximum total length of 36.2 mm, length of 23.0 mm, dimension of 0.6 mm, and minimum installation-related dimension of 16 mm.
- Thread: M10x1.25
- Length: 12 mm
- Additional thread reference: M6x0.75
- rs minimum: 0.0 mm
- Maximum tightening torque: 13.8 Nm
What are the main dimensional values to review before selection?
The primary dimensions provided are the 10 mm stud diameter, 22 mm outer diameter, and 12 mm width. Because the supplied data includes multiple thread and length entries, the full specification should be reviewed against the required installation configuration.
CFRU110 Load Ratings and Product Mass
The supplied product data lists a basic dynamic load rating of 5430 N, a basic static load rating of 6890 N, and a maximum static allowable load of 6890 N. The listed mass of the cam follower is 45.0 g.
- Basic dynamic load rating: 5430 N
- Basic static load rating: 6890 N
- Maximum static allowable load: 6890 N
- Mass: 45.0 g
What load and mass information is available for the CFRU110?
The CFRU110 data provides rated values of 5430 N dynamic and 6890 N static, with the same value listed for maximum static allowable load. Its stated mass is 45.0 g.
