IKO CFRU1101
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,

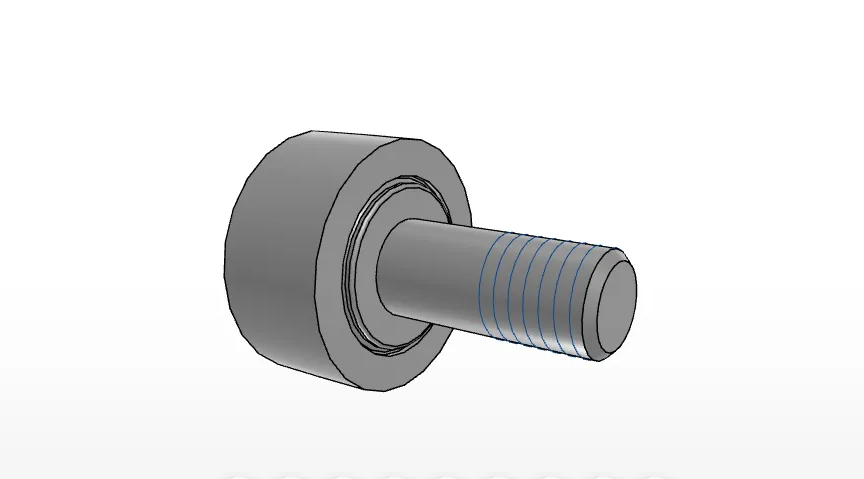

CFRU1101 IKO Cam Follower Overview
The CFRU1101 is an IKO cam follower in the Cam Followers series. The supplied product data identifies it as a caged, shielded, centralized lubrication cam follower made of high carbon steel, with a crowned outer ring and a screwdriver slot.
What bearing type and material are specified for the CFRU1101?
The listed bearing type is Cam Followers, the bearing material is High Carbon Steel, and the internal structure is listed as Cage Type.
CFRU1101 Dimensions and Thread Details
The CFRU1101 has an outer diameter of 26 mm, width of 12 mm, stud diameter of 10 mm, and an M10x1.25 thread. Additional supplied measurements include a maximum width of 13.2 mm, maximum total length of 36.2 mm, length of 23.0 mm, and a mass of 60.0 g.
- Order Number: CF-RU1-10-1
- Outer Diameter: 26 mm
- Width: 12 mm
- Stud Diameter: 10 mm
- Thread: M10x1.25
- Maximum Tightening Torque: 13.8 Nm
What installation-related dimension should be reviewed?
The product data lists a minimum installation-related dimension of 16 mm. The supplied record also lists an M6x0.75 thread entry, a 12 mm length entry, and a 0.6 mm dimension entry; these should be checked against the official dimension table before selection.
CFRU1101 Load Ratings and Construction Features
The supplied data lists a basic dynamic load rating of 5430 N, a basic static load rating of 6890 N, and a maximum static allowable load of 6890 N. Construction features noted in the product information include a crowned outer ring, shields, a cage, centralized lubrication, and a screwdriver slot.
- Basic dynamic load rating: 5430 N
- Basic static load rating: 6890 N
- Maximum static allowable load: 6890 N
- Mass: 60.0 g
What design features are included in the product description?
The description identifies the CFRU1101 as a centralized lubrication cam follower with a caged structure, high carbon steel construction, crowned outer ring, shielded arrangement, and screwdriver slot. Compatibility and suitability should be confirmed using the required installation dimensions and load conditions.
