IKO CFRU112

The IKO CFRU112 Is a Cam Follower in the IKO Cam Followers Series

What product category and brand identify the CFRU112?

The CFRU112 is an IKO bearing within the Cam Followers product series. Its supplied category path is Brand > IKO > Cam Followers, and the order number is listed as CF-RU1-12.

• Model: CFRU112
• Brand: IKO
• Series: Cam Followers
• Bearing type: Cam Followers

The CFRU112 Uses High Carbon Steel with a Caged Internal Structure

What construction features are included in the supplied product data?

The supplied product information identifies the bearing material as high carbon steel and the internal structure as cage type. It also describes a crowned outer ring, shielded arrangement, screwdriver slot, and configuration for centralized lubrication.

• Material: High carbon steel
• Internal structure: Cage type
• Outer ring: Crowned
• Protection feature: Shielded
• Drive feature: Screwdriver slot
• Lubrication arrangement: Centralized lubrication

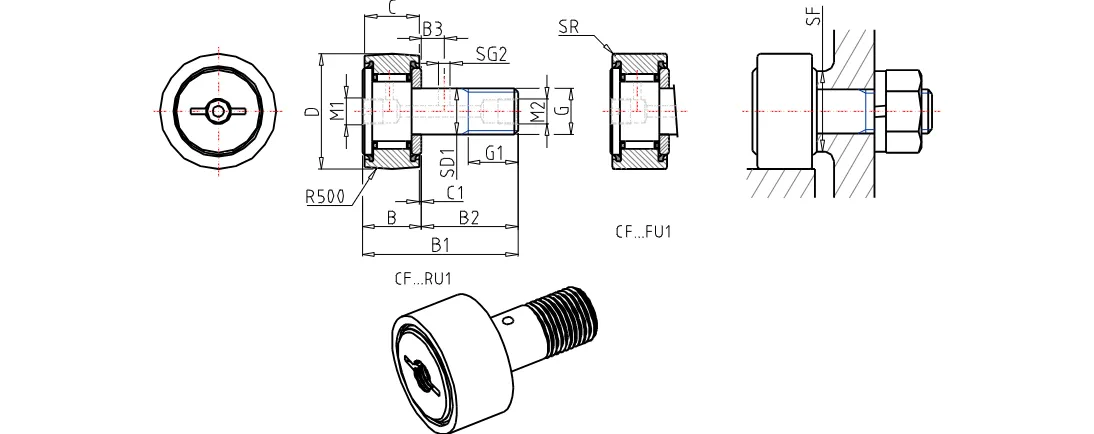

The CFRU112 Has Supplied Dimensions and Load Values for Selection Review

What measurements and ratings are provided?

The product data lists a 12 mm stud diameter, 30 mm outer diameter, 14 mm width, M12x1.5 thread, 95.0 g mass, and a maximum tightening torque of 23.9 Nm. Additional listed values include a 7910 N basic dynamic load rating, 9790 N basic static load rating, and 9790 N maximum static allowable load.

1. Stud diameter: 12 mm
2. Outer diameter: 30 mm
3. Width: 14 mm
4. Thread: M12x1.5
5. Length: 25.0 mm
6. Maximum total length: 40.2 mm
7. Maximum width: 15.2 mm
8. Maximum tightening torque: 23.9 Nm
9. Basic dynamic load rating: 7910 N
10. Basic static load rating: 9790 N
11. Maximum static allowable load: 9790 N
12. Mass: 95.0 g
