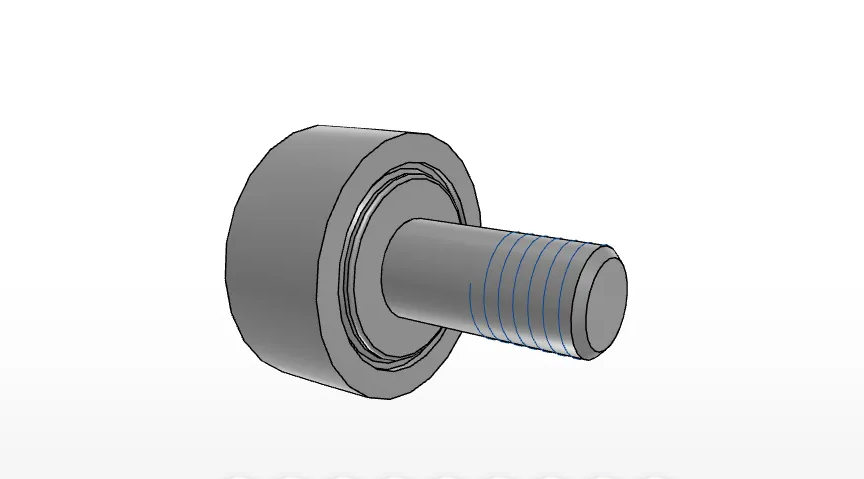

IKO CFRU1121
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CF-RU1-12-1
Stud Diameter
12
mm
Outer Diameter
32
mm
Width
14
mm
Stud Diameter
12
mm
Thread
M12x1.5
Length
13
mm
Maximum width
15.2
mm
Max.Total length
40.2
mm
Length
25.0
mm
Dimension
6
mm
Dimension
0.6
mm
Diameter
3
mm
Thread
M6x0.75
rs min.
0.0
mm
Min.Dimension related to the installation
21
mm
Maximum tightening torque
23.9
Nm
Basic dynamic load rating
7910
N
Basic static load rating
9790
N
Max.Static allowable load
9790
N
Mass
105.0
g
IKO CFRU1121 Cam Follower Meets the Listed Cam Follower Configuration
What type and series does the CFRU1121 belong to?
The IKO CFRU1121 is listed under Cam Followers in the product series and category path Brand > IKO > Cam Followers. Its supplied description identifies a centralized lubrication cam follower with a caged internal structure, crowned outer ring, shielded arrangement, and screwdriver slot.

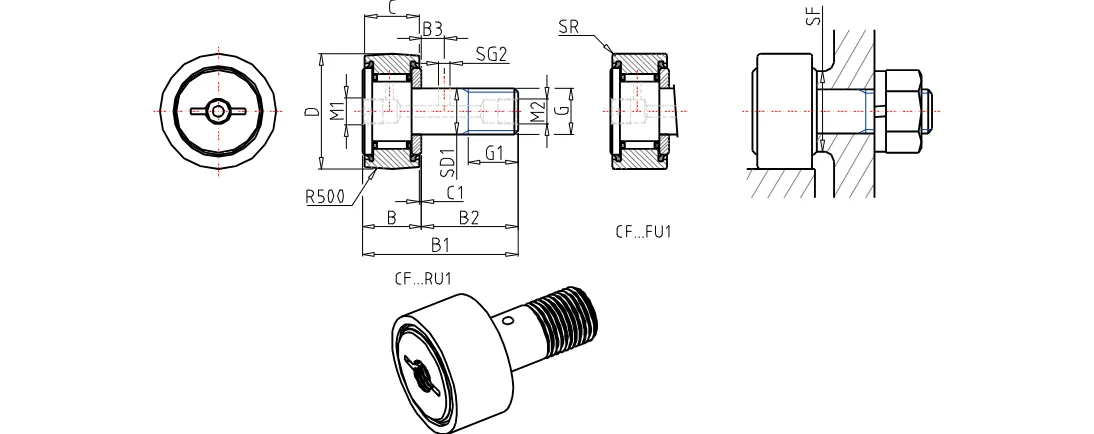

CFRU1121 Dimensions and Stud Details Are Specified for Reference
What measurements are provided for the IKO CFRU1121?
The supplied product data lists the following dimensions and related values:
- Order number: CF-RU1-12-1
- Stud diameter: 12 mm
- Outer diameter: 32 mm
- Width: 14 mm
- Thread: M12x1.5; an additional M6x0.75 thread is listed
- Thread length: 13 mm
- Maximum width: 15.2 mm
- Maximum total length: 40.2 mm
- Length: 25.0 mm
- Listed dimensions: 6 mm, 0.6 mm, and 3 mm
- Minimum installation-related dimension: 21 mm
CFRU1121 Uses High Carbon Steel with Listed Load and Mass Values
What material, load, torque, and mass data are available?
The bearing material is listed as high carbon steel, and the internal structure is listed as cage type. The supplied data also includes:
- Maximum tightening torque: 23.9 Nm
- Basic dynamic load rating: 7910 N
- Basic static load rating: 9790 N
- Maximum static allowable load: 9790 N
- Mass: 105.0 g
The listed value for rs min. is 0.0 mm. Use these values only as the supplied product specifications for the IKO CFRU1121.
