IKO CFRU116
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CF-RU1-16
Stud Diameter
16
mm
Outer Diameter
35
mm
Width
18
mm
Stud Diameter
16
mm
Thread
M16x1.5
Length
17
mm
Maximum width
19.6
mm
Max.Total length
52.1
mm
Length
32.5
mm
Dimension
8
mm
Dimension
0.8
mm
Diameter
3
mm
Thread
PT 1/8
rs min.
0.0
mm
Min.Dimension related to the installation
26
mm
Maximum tightening torque
58.5
Nm
Basic dynamic load rating
12000
N
Basic static load rating
18300
N
Max.Static allowable load
18300
N
Mass
170.0
g

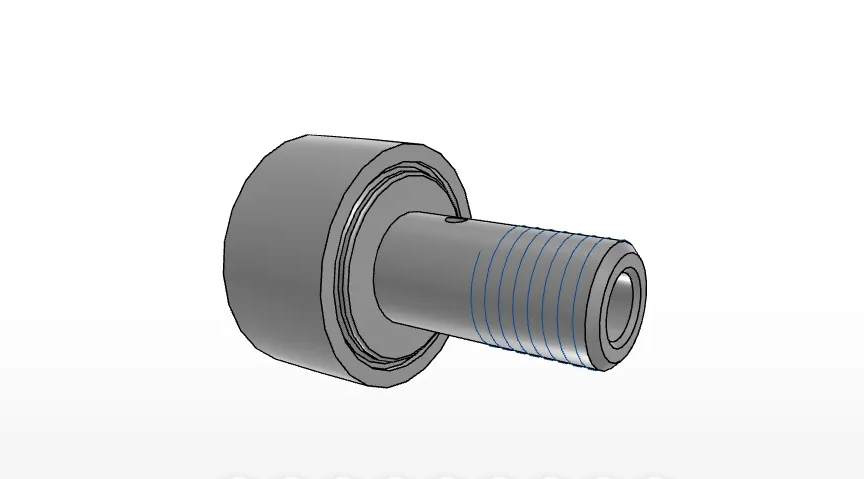

CFRU116 IKO Cam Follower for Stud-Type Mounting
The CFRU116 is an IKO cam follower in the Cam Followers product series. It uses a 16 mm stud, a 35 mm outer diameter, and an 18 mm width, with an M16x1.5 thread for stud-type installation.
What basic bearing details are provided for the CFRU116?
- Bearing type: Cam follower
- Order number: CF-RU1-16
- Internal structure: Cage type
- Material: High carbon steel
- Configuration features: Crowned outer ring, shielded construction, screwdriver slot, and centralized lubrication design

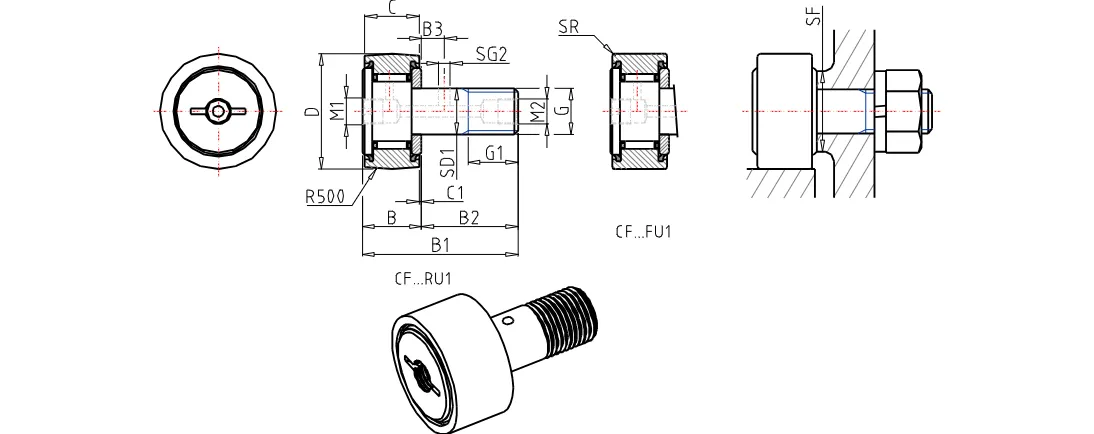

CFRU116 Dimensions and Installation Specifications
The supplied dimensional data identifies the main mounting and envelope measurements for the CFRU116. These values can be compared directly with the required installation space and mating component drawings.
What dimensions and torque value are listed for the CFRU116?
- Stud diameter: 16 mm
- Outer diameter: 35 mm
- Width: 18 mm
- Thread: M16x1.5, 17 mm length
- Maximum width: 19.6 mm
- Maximum total length: 52.1 mm
- Length: 32.5 mm
- Installation-related minimum dimension: 26 mm
- Additional listed dimensions: 8 mm, 0.8 mm, and 3 mm diameter
- Lubrication thread: PT 1/8
- Maximum tightening torque: 58.5 Nm
- Mass: 170.0 g
CFRU116 Load Ratings and Construction Details
The CFRU116 is described as a caged, shielded cam follower with a crowned outer ring and a high carbon steel construction. The product data also lists basic dynamic, basic static, and maximum static allowable load values.
What load ratings are included in the product data?
- Basic dynamic load rating: 12,000 N
- Basic static load rating: 18,300 N
- Maximum static allowable load: 18,300 N
- Outer ring form: Crowned outer ring
- Protection arrangement: Shielded
