IKO CFRU118

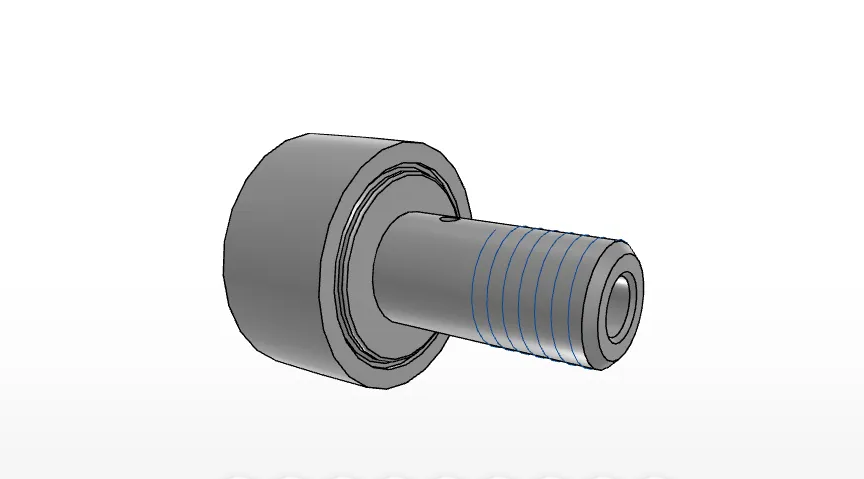

CFRU118 IKO Cam Follower Overview

The CFRU118 is an IKO cam follower in the Cam Followers series. It is designed with a caged internal structure, high carbon steel construction, a crowned outer ring, shielding, and a screwdriver slot. The stated order number is CF-RU1-18.

What bearing type and material are identified for the CFRU118?

The product data identifies the CFRU118 as a Cam Follower with a cage-type internal structure. The listed bearing material is high carbon steel.

• Model: CFRU118
• Brand: IKO
• Series: Cam Followers
• Outer ring: Crowned
• Configuration: Shielded, caged, screwdriver slot

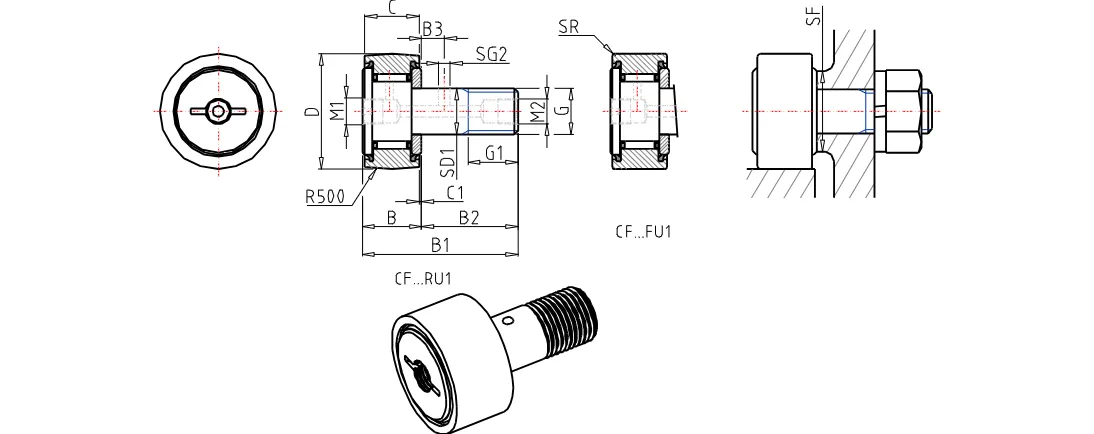

CFRU118 Dimensions and Thread Details

The CFRU118 cam follower has an 18 mm stud diameter, 40 mm outer diameter, and 20 mm width. The thread is specified as M18x1.5 with a 19 mm thread length. Additional listed measurements include a 58.1 mm maximum total length and a 36.5 mm stud length.

What key dimensions are provided for the CFRU118?

The supplied dimensional data includes the following values:

• Stud diameter: 18 mm
• Outer diameter: 40 mm
• Width: 20 mm
• Thread: M18x1.5, 19 mm length
• Maximum width: 21.6 mm
• Maximum total length: 58.1 mm
• Length: 36.5 mm
• Installation-related minimum dimension: 29 mm
• Mass: 250.0 g

CFRU118 Load Ratings and Installation Values

The product data lists a basic dynamic load rating of 14,800 N and a basic static load rating of 25,200 N. The maximum static allowable load is also listed as 25,200 N. A maximum tightening torque of 86.2 Nm is specified for installation.

What load and tightening information is stated for the CFRU118?

The supplied performance and installation figures are:

1. Basic dynamic load rating: 14,800 N
2. Basic static load rating: 25,200 N
3. Maximum static allowable load: 25,200 N
4. Maximum tightening torque: 86.2 Nm
5. Lubrication connection: PT 1/8 thread

Use these figures with the original equipment or engineering requirements where this IKO cam follower is being selected.
