IKO CFRU120
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,

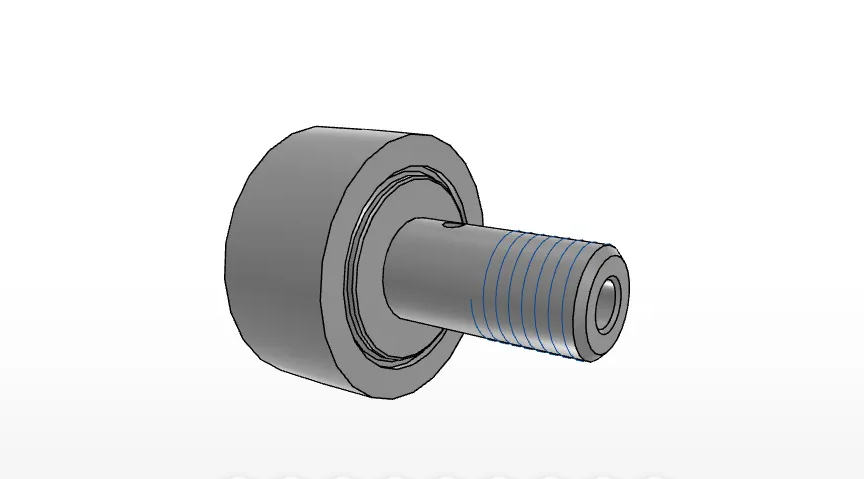

IKO CFRU120 Cam Follower Overview
The CFRU120 is an IKO cam follower in the Cam Followers product series. Its listed features include a crowned outer ring, shielded arrangement, screwdriver slot, and configuration for centralized lubrication. The bearing uses a caged internal structure and high carbon steel bearing material.
What type of bearing is the CFRU120?
The CFRU120 is classified as a cam follower. It is supplied under the IKO brand and is associated with the category path Brand > IKO > Cam Followers.

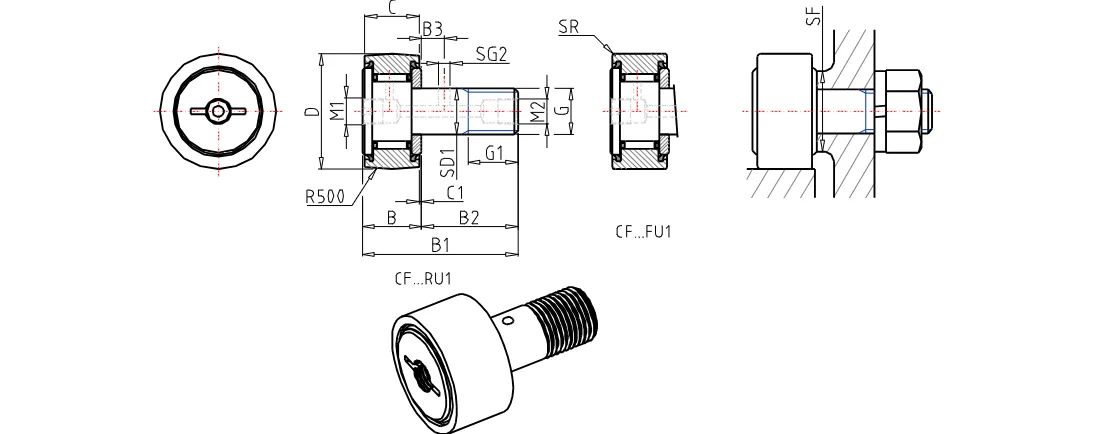

Specified Dimensions and Stud Details
The product data lists order number CF-RU1-20 with a 20 mm stud diameter and M20x1.5 thread. The outer diameter is 52 mm, the width is 24 mm, and the maximum width is 25.6 mm. Additional listed dimensions include a 21 mm thread length, 40.5 mm length, 66.1 mm maximum total length, 9 mm dimension, 0.8 mm dimension, 4 mm diameter, PT 1/8 thread, 0.0 mm minimum radius, and 34 mm minimum installation-related dimension.
What tightening torque is listed for the stud?
The maximum tightening torque specified for the CFRU120 is 119.0 Nm. The listed mass is 460.0 g.
Load Ratings and Construction Features
The CFRU120 has a listed basic dynamic load rating of 20700 N, basic static load rating of 34600 N, and maximum static allowable load of 34600 N. The construction data identifies high carbon steel as the bearing material and cage type as the internal structure.
Which design features are included in the product description?
- Lubrication: centralized lubrication configuration
- Outer ring: crowned outer ring
- Protection: shielded
- Installation feature: screwdriver slot
- Internal structure: cage type
- Material: high carbon steel
