IKO CFRU1201
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,

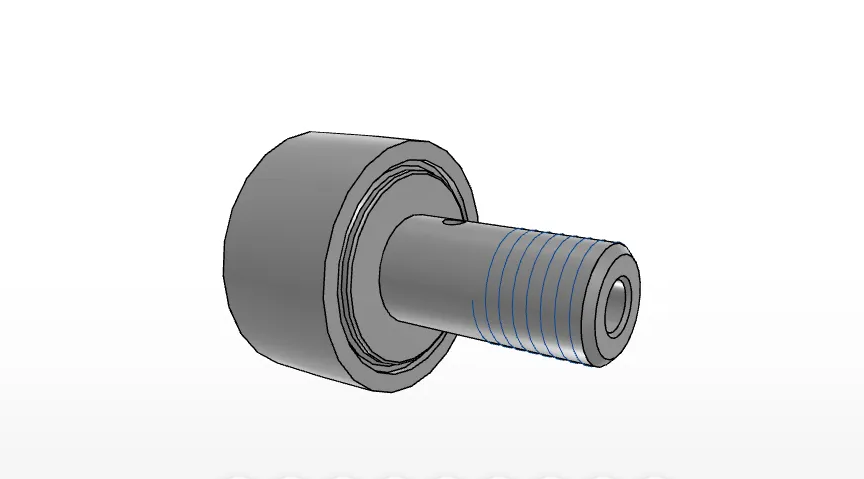

CFRU1201 IKO Cam Follower Overview
The CFRU1201 is an IKO cam follower in the Cam Followers series. The supplied product data identifies it as a centralized lubrication, caged unit made of high carbon steel, with a crowned outer ring, shields, and a screw driver slot.
What is the order number for this cam follower?
The order number listed for the product is CF-RU1-20-1. It is presented under the IKO brand and the Cam Followers product category.

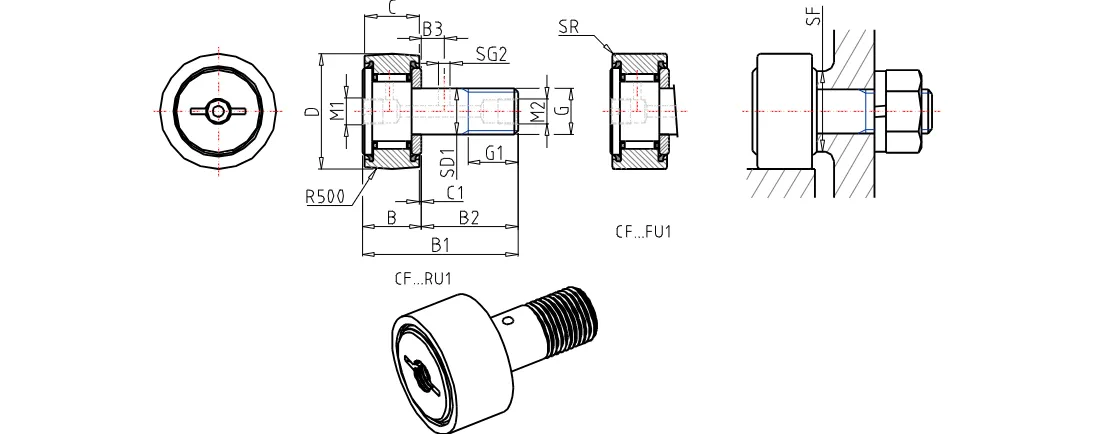

Reported Dimensions and Stud Details
The product data lists a stud diameter of 20 mm, an outer diameter of 47 mm, and a width of 24 mm. Additional reported dimensions include a 40.5 mm length, 66.1 mm maximum total length, 25.6 mm maximum width, and 385.0 g mass.
What thread and mounting-related dimensions are provided?
The stud thread is specified as M20x1.5 with a 21 mm thread length. The data also lists a PT 1/8 thread, a 4 mm diameter dimension, 9 mm dimension, 0.8 mm dimension, 34 mm minimum installation-related dimension, and a maximum tightening torque of 119.0 Nm.
Load Ratings and Construction Features
The CFRU1201 uses a cage type internal structure and high carbon steel bearing material. Its listed basic dynamic load rating is 20,700 N, its basic static load rating is 34,600 N, and its maximum static allowable load is also listed as 34,600 N.
What design features are included in the product description?
The description identifies centralized lubrication, a caged structure, high carbon steel construction, a crowned outer ring, shielding, and a screw driver slot. These details describe the supplied product configuration without adding unstated application or compatibility claims.
