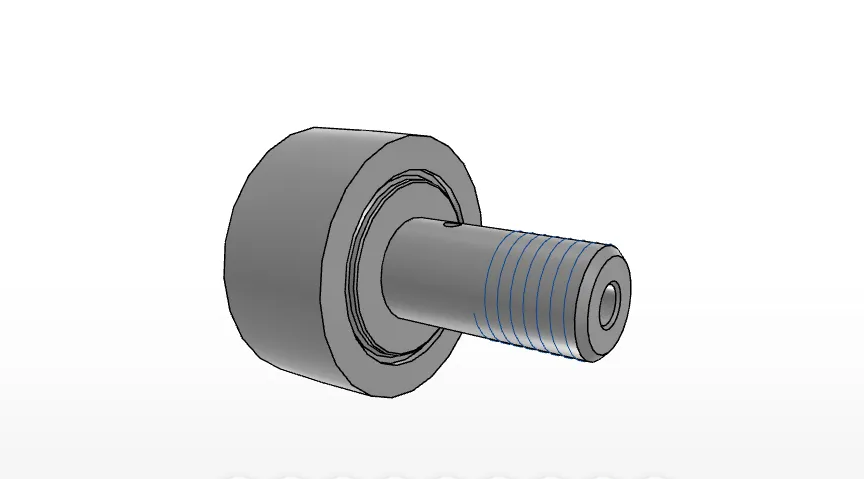

IKO CFRU124
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock

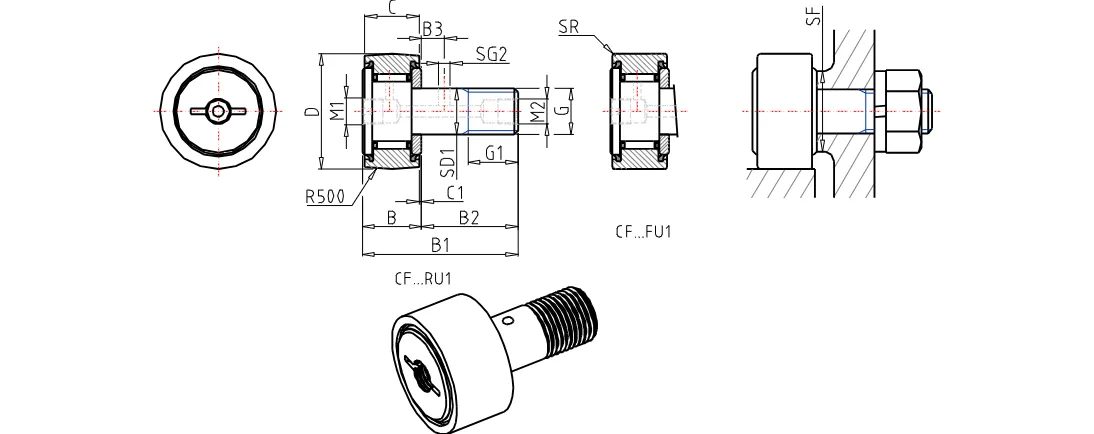

Order Number
CF-RU1-24
Stud Diameter
24
mm
Outer Diameter
62
mm
Width
29
mm
Stud Diameter
24
mm
Thread
M24x1.5
Length
25
mm
Maximum width
30.6
mm
Max.Total length
80.1
mm
Length
49.5
mm
Dimension
11
mm
Dimension
0.8
mm
Diameter
4
mm
Thread
PT 1/8
rs min.
0.0
mm
Min.Dimension related to the installation
40
mm
Maximum tightening torque
215.0
Nm
Basic dynamic load rating
30500
N
Basic static load rating
52600
N
Max.Static allowable load
52000
N
Mass
815.0
g
The IKO CFRU124 Is a Cam Follower in the CF-RU1-24 Series
What type of bearing is the CFRU124?
The IKO CFRU124 belongs to the Cam Followers product series and is listed under Brand > IKO > Cam Followers. The supplied order-number designation is CF-RU1-24.
- Brand: IKO
- Model: CFRU124
- Order Number: CF-RU1-24
- Bearing Type: Cam Followers
- Internal Structure: Cage Type
The CFRU124 Uses High Carbon Steel Construction with Defined Features
What construction and design features are specified for this bearing?
The product data identifies the bearing material as high carbon steel and the internal structure as cage type. The stated design features include centralized lubrication, a crowned outer ring, shielding, and a screwdriver slot.
- Bearing Material: High Carbon Steel
- Outer Ring: Crowned outer ring
- Protection: Shielded
- Lubrication Design: Centralized lubrication
- Installation Feature: Screwdriver slot
The CFRU124 Has Supplied Dimensions, Thread Data, and Load Values
What measurements and ratings are provided for the CFRU124?
The available product data lists the following dimensions and load values. These values are provided for reference when matching the bearing to a compatible installation.
- Stud diameter: 24 mm
- Outer diameter: 62 mm
- Width: 29 mm
- Thread: M24x1.5, 25 mm length
- Maximum width: 30.6 mm
- Maximum total length: 80.1 mm
- Length: 49.5 mm
- Dimension: 11 mm
- Dimension: 0.8 mm
- Diameter: 4 mm
- Thread: PT 1/8
- rs minimum: 0.0 mm
- Minimum installation-related dimension: 40 mm
- Maximum tightening torque: 215.0 Nm
- Basic dynamic load rating: 30500 N
- Basic static load rating: 52600 N
- Maximum static allowable load: 52000 N
- Mass: 815.0 g
