IKO CFRU130
Centralized Lubrication Cam Follower, Caged, High Carbon Steel, Crowned Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CF-RU1-30
Stud Diameter
30
mm
Outer Diameter
80
mm
Width
35
mm
Stud Diameter
30
mm
Thread
M30x1.5
Length
32
mm
Maximum width
37.0
mm
Max.Total length
100.0
mm
Length
63.0
mm

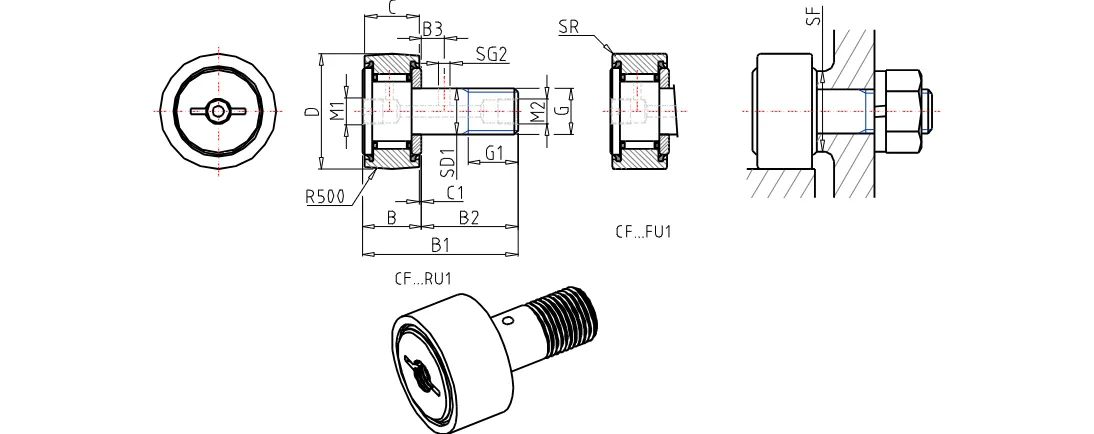

Dimension
15
mm
Dimension
1.0
mm
Diameter
4
mm
Thread
PT 1/8
rs min.
0.0
mm
Min.Dimension related to the installation
49
mm
Maximum tightening torque
438.0
Nm
Basic dynamic load rating
45400
N
Basic static load rating
85100
N
Max.Static allowable load
85100
N
Mass
1870.0
g
