IKO CFS2

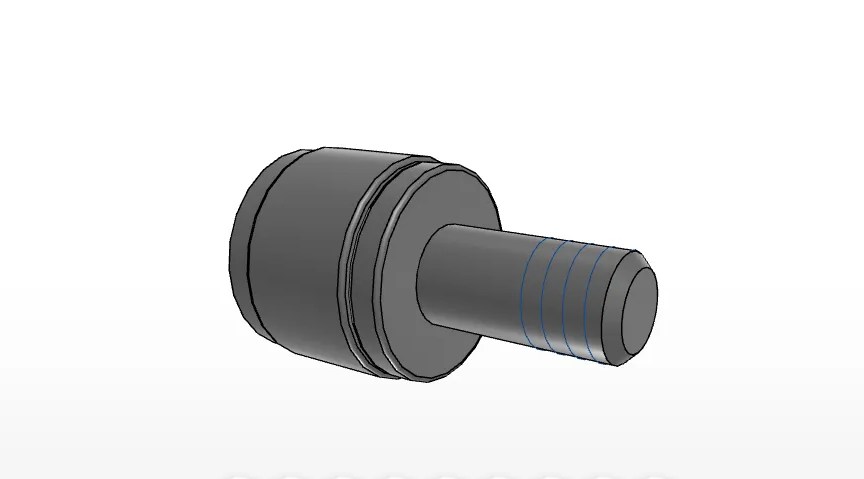

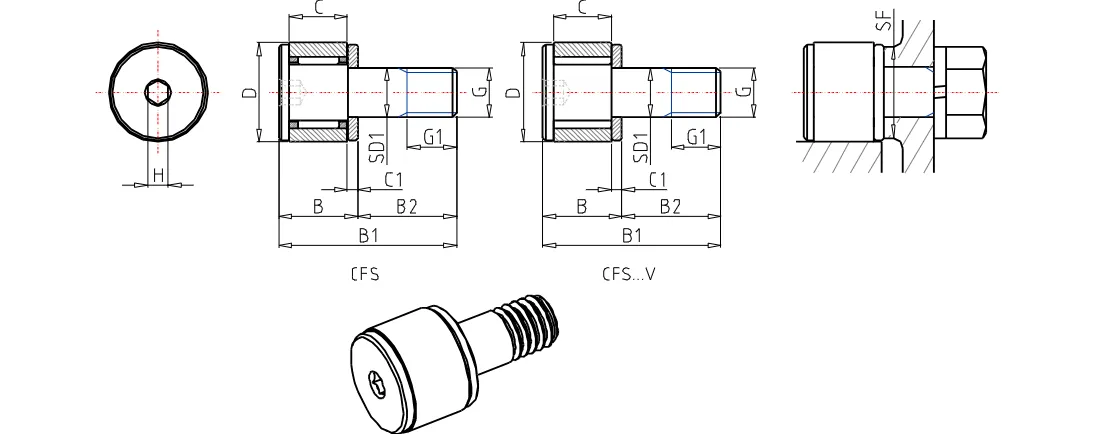

Miniature Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CFS2
Stud Diameter
2.0
mm
Outer Diameter
4.5
mm
Width
2.5
mm
Stud Diameter
2.0
mm
Thread
M2x0.4
Length
2.0
mm
Width
4.0
mm
Total Lenght
8.0
mm
Length
4
mm
Dimension
0.7
mm
Dimension
0.9
mm
Min.Dimension related to the installation
4.3
mm
Maximum tightening torque
9.1
Nm
Basic dynamic load rating
288
N
Basic static load rating
202
N
Max.Static allowable load
202
N
Mass
0.6
g
