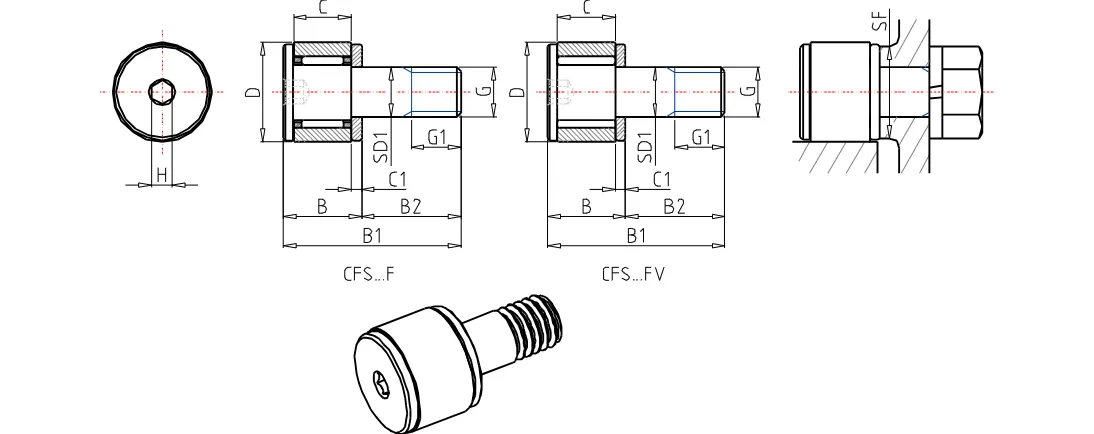

IKO CFS25F
Miniature Metric Cam Follower, Caged, Stainless Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CFS2.5F
Stud Diameter
2.5
mm
Outer Diameter
5.0
mm
Width
3.0
mm
Stud Diameter
2.5
mm
Thread
M2.5x0.45
Length
2.5
mm
Width
4.5
mm
Total Lenght
9.5
mm
Length
5
mm
Dimension
0.7
mm
Dimension
0.9
mm
Min.Dimension related to the installation
4.8
mm
Maximum tightening torque
18.7
Nm
Basic dynamic load rating
342
N
Basic static load rating
281
N
Max.Static allowable load
281
N
Mass
1.0
g
