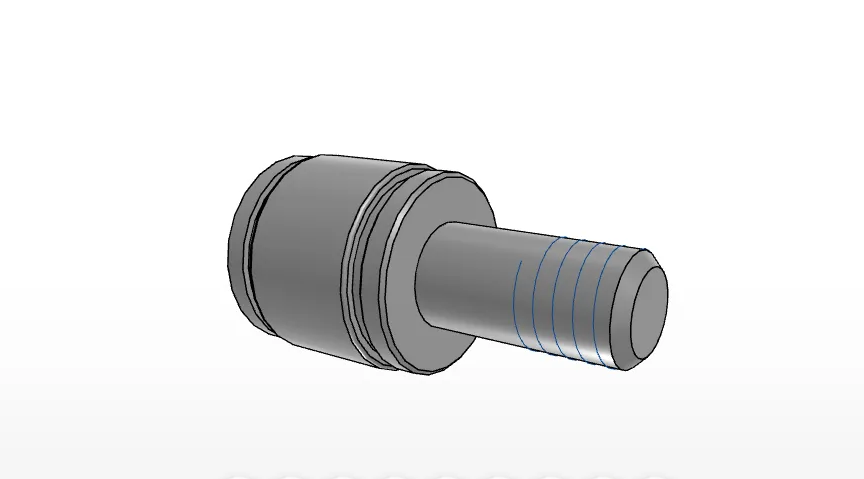

IKO CFS25W
Thrust Disk Miniature Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock

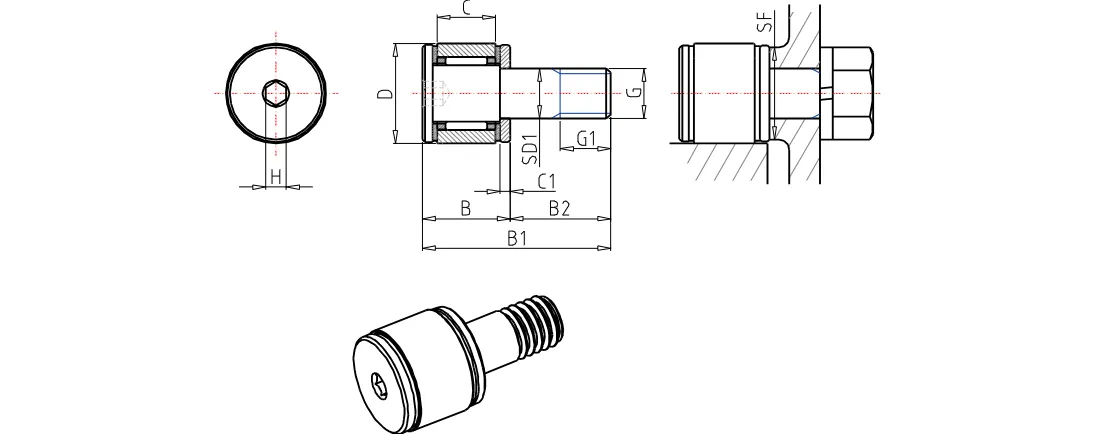

Order Number
CFS2.5W
Stud Diameter
2.5
Outer Diameter
5.0
Width
3.0
Stud Diameter
2.5
Thread
M2.5x0.45
Length
2.5
Width
5.0
Total Lenght
10.0
Length
5.0
Dimension
0.7
Dimension
0.9
Min.Dimension related to the installation
4.8
Maximum tightening torque
18.7
Basic dynamic load rating
428
Basic static load rating
351
Max.Static allowable load
313
Mass
1.00
