IKO CFS3V

Miniature Metric Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

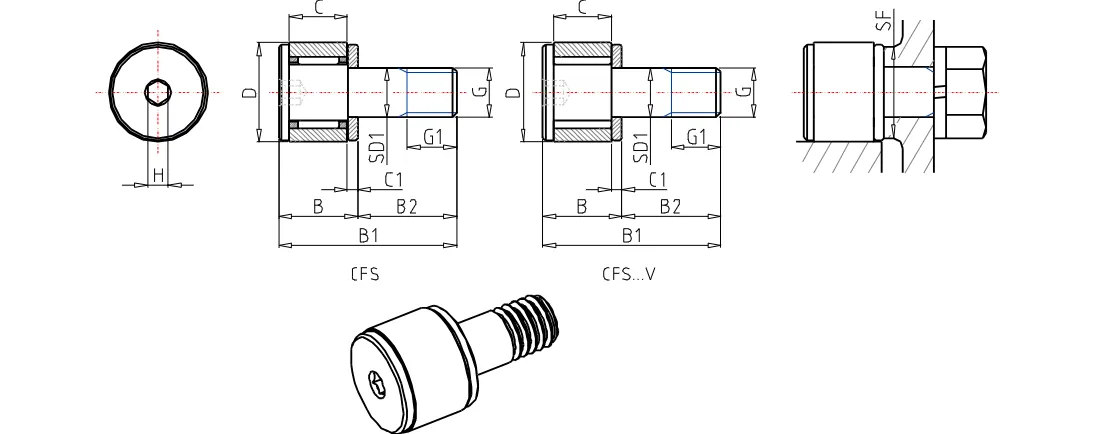

Detailed data of

CFS3V

Order Number CFS3V
Stud Diameter 3.0 mm
Outer Diameter 6.0 mm
Width 4.0 mm
Stud Diameter 3.0 mm
Thread M3x0.5
Length 3.0 mm
Width 5.5 mm
Total Lenght 11.5 mm
Length 6 mm
Dimension 0.7 mm
Dimension 1.3 mm
Min.Dimension related to the installation 5.8 mm
Maximum tightening torque 33.5 Nm
Basic dynamic load rating 1420 N
Basic static load rating 1790 N
Max.Static allowable load 484 N
Mass 2.0 g
