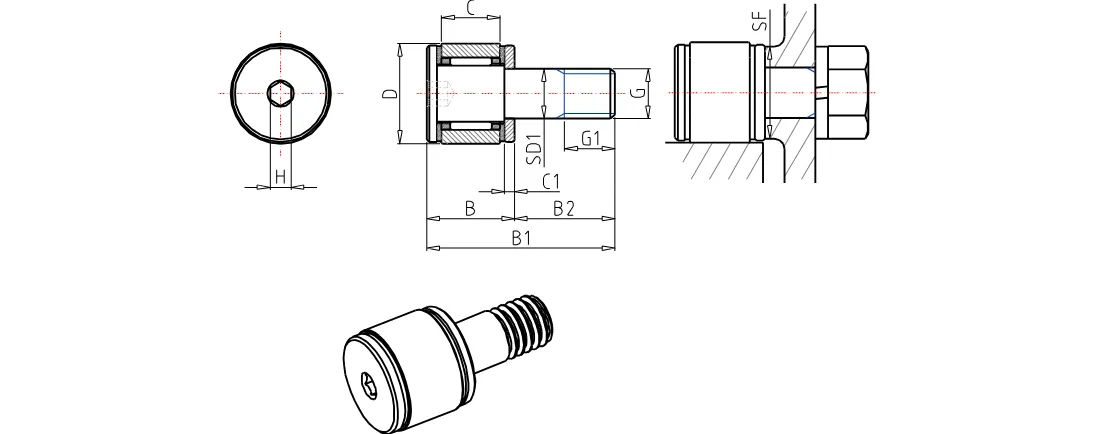

IKO CFS4FW
Trust Disk Miniature Metric Cam Follower, Caged, Stainless Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CFS4FW
Stud Diameter
4.0
Outer Diameter
8.0
mm
Width
5.0
mm
Stud Diameter
4.0
mm
Thread
M4x0.7
Length
4.0
Width
8.0
mm
Total Lenght
16.0
mm
Length
8
mm
Dimension
1.0
mm
Dimension
1.5
mm
Min.Dimension related to the installation
7.7
Maximum tightening torque
77.7
Ncm
Basic dynamic load rating
897
N
Basic static load rating
894
N
Max.Static allowable load
785
N
Mass
4.0
g
