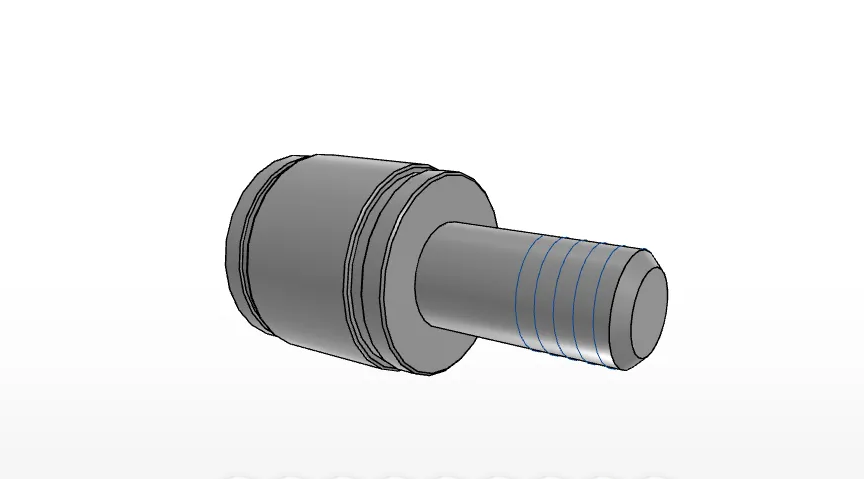

IKO CFS4W
Thrust Disk Miniature Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CFS4W
Stud Diameter
4.0
Outer Diameter
8.0
Width
5.0
Stud Diameter
4.0
Thread
M4x0.7
Length
4.0
Width
8.0
Total Lenght
16.0
Length
8.0

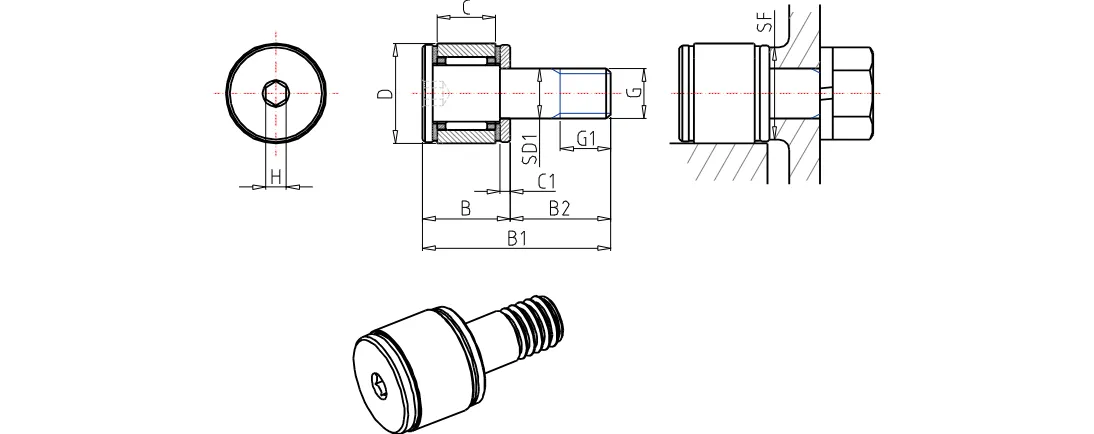

Dimension
1.0
Dimension
1.5
Min.Dimension related to the installation
7.7
Maximum tightening torque
77.7
Basic dynamic load rating
1120
Basic static load rating
1120
Max.Static allowable load
785
Mass
4.00
