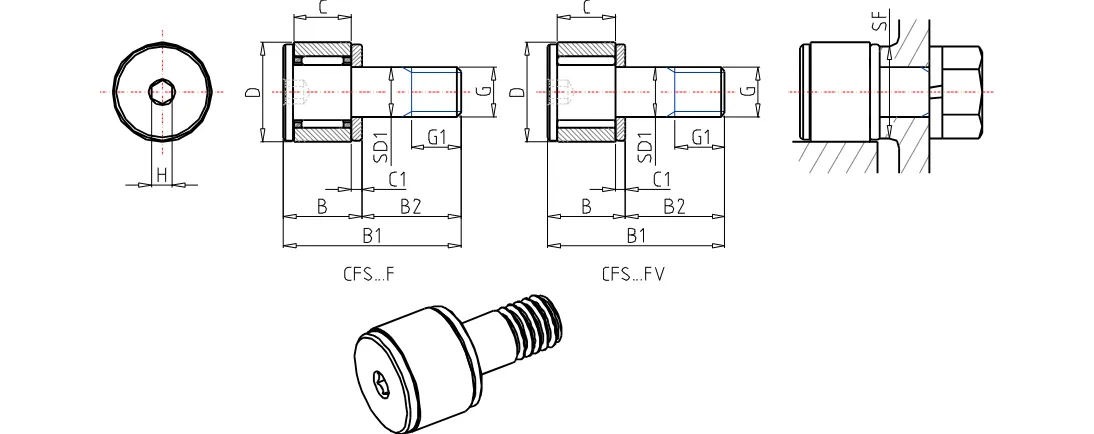

IKO CFS5FV
Miniature Metric Cam Follower, Full Complement, Stainless Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
Order Number
CFS5FV
Stud Diameter
5.0
mm
Outer Diameter
10.0
mm
Width
6.0
mm
Stud Diameter
5.0
mm
Thread
M5x0.8
Length
5.0
mm
Width
8.0
mm
Total Lenght
18.0
mm
Length
10
mm
Dimension
1.0
mm
Dimension
2.0
mm
Min.Dimension related to the installation
9.6
mm
Maximum tightening torque
158.0
Nm
Basic dynamic load rating
2540
N
Basic static load rating
3760
N
Max.Static allowable load
1570
N
Mass
7.0
g
