IKO CFS5FW

Thrust Disk Miniature Metric Cam Follower, Caged, Stainless Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

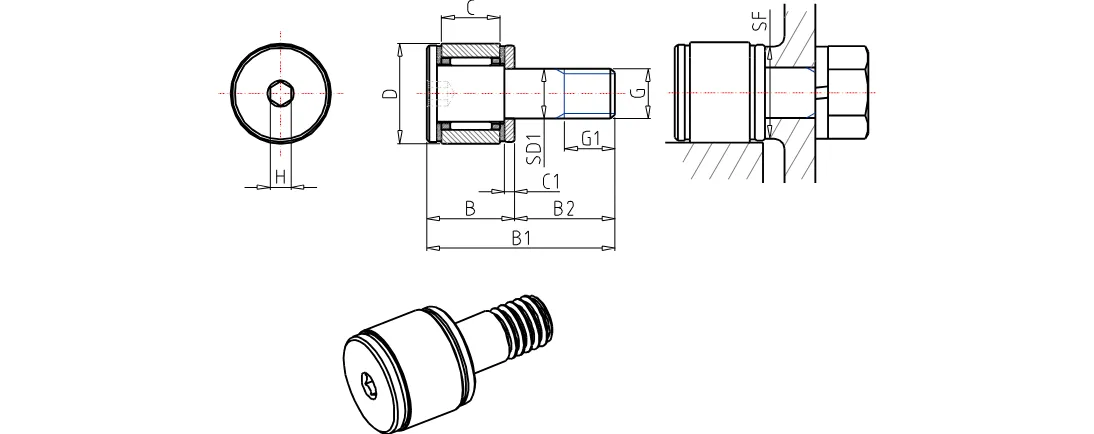

Detailed data of

CFS5FW

Order Number CFS5FW
Stud Diameter 5.0
Outer Diameter 10.0 mm
Width 6.0 mm
Stud Diameter 5.0 mm
Thread M5x0.8
Length 5.0 Width
9.0 mm Total Lenght
19.0 mm Length
10 mm Dimension
1.0 mm Dimension
2.0 mm Min.Dimension related to the installation
9.6 Maximum tightening torque
158.0 Ncm
Basic dynamic load rating 1250 N
Basic static load rating 1480 N
Max.Static allowable load 1370 N
Mass 7.0 g
