IKO CFS6W

Thrust Disk Miniature Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com

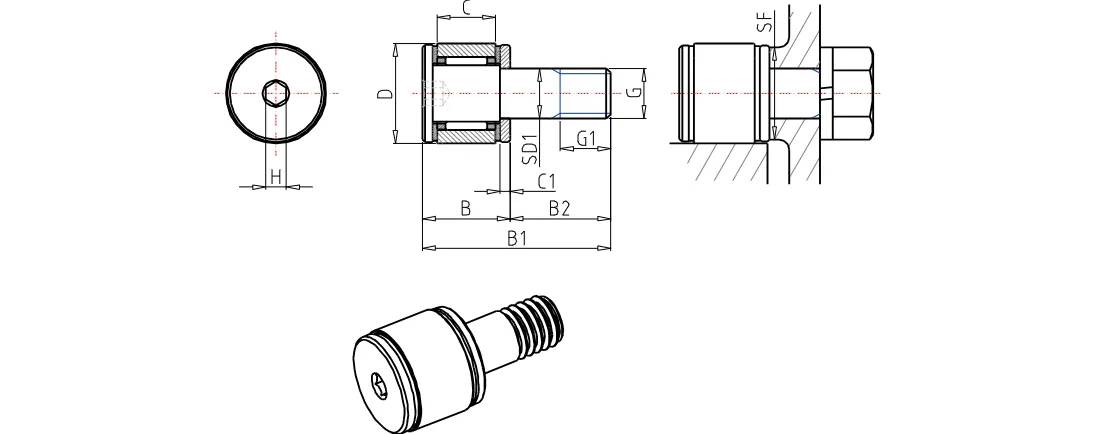

Detailed data of

CFS6W

Order Number CFS6W
Stud Diameter 6.0
Outer Diameter 12.0
Width 7.0
Stud Diameter 6.0
Thread M6x1
Length 6.0
Width 10.5
Total Lenght 22.5
Length 12.0
Dimension 1.2
Dimension 2.5
Min.Dimension related to the installation 11.6
Maximum tightening torque 268.0
Basic dynamic load rating 2090
Basic static load rating 2200
Max.Static allowable load 1920
Mass 13.00
