IKO CFSFU10
Easy Mount Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded,
IKO CFSFU10 Cam Follower Basic Identification

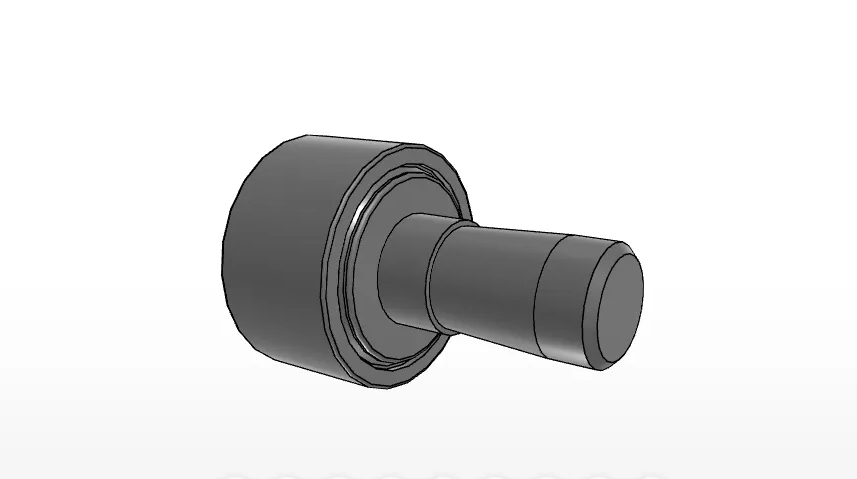

The IKO CFSFU10, also listed by order number CF-SFU-10, belongs to the IKO Cam Followers series. The supplied product data identifies it as an easy-mount metric cam follower with a cylindrical outer ring, shielded arrangement, and cage-type internal structure.
What type and brand is the CFSFU10?
The CFSFU10 is an IKO cam follower. The bearing type is listed as Cam Followers, and the product path places it within Brand > IKO > Cam Followers.
CFSFU10 Material and Construction Details
The supplied data specifies high carbon steel as the bearing material. Its internal structure is described as cage type, and the cam follower features a cylindrical outer ring and shielded design. No additional material grades, certifications, or performance claims are provided in the product data.
What construction features are stated for the CFSFU10?
- Bearing material: High carbon steel
- Internal structure: Cage type
- Outer ring: Cylindrical outer ring
- Configuration: Shielded, easy-mount metric cam follower
CFSFU10 Dimensional and Load Data
The IKO CFSFU10 has a stated stud diameter of 10 mm, outer diameter of 22 mm, and width of 12 mm. Additional supplied dimensions include a maximum width of 13.2 mm, maximum total length of 33.0 mm, and length of 19.8 mm. The basic dynamic load rating is listed as 5430 N; the static load rating field is incomplete in the supplied data.
What dimensions are provided for selecting or installing CFSFU10?
- Stud diameter: 10 mm
- Outer diameter: 22 mm
- Width: 12 mm
- Maximum width: 13.2 mm
- Maximum total length: 33.0 mm
- Length: 19.8 mm
- Installation-related dimension: 10 mm with tolerance +0.015/0
- Minimum installation-related dimensions: 20 mm and 16 mm
- Reference installation-related dimension: 10 mm
- rs minimum: 0.3 mm
