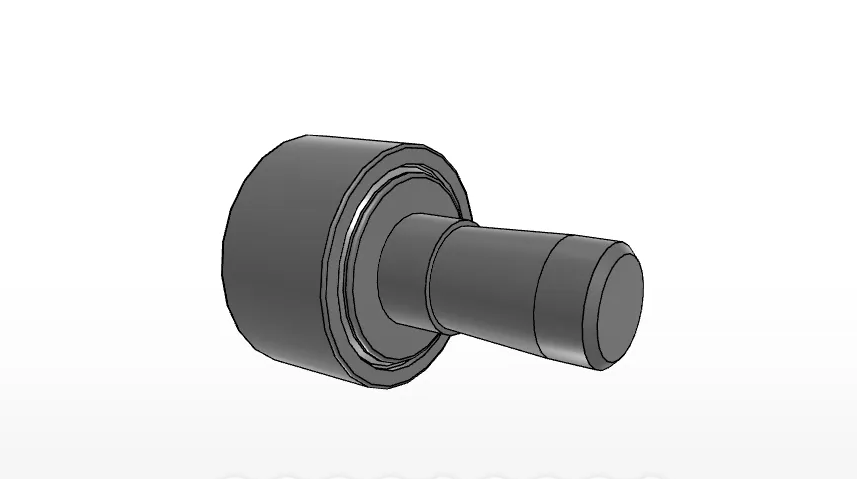

IKO CFSFU10B
Easy Mount Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CF-SFU-10B
Stud Diameter
10
Outer Diameter
22
Width
12
Stud Diameter
10
Maximum width
13.2
Max.Total length
33.0
Length
19.8
Dimension
0.6
Dimension
5
Dimension
10
H
4
Dimension
0.5
rs min.
0.3

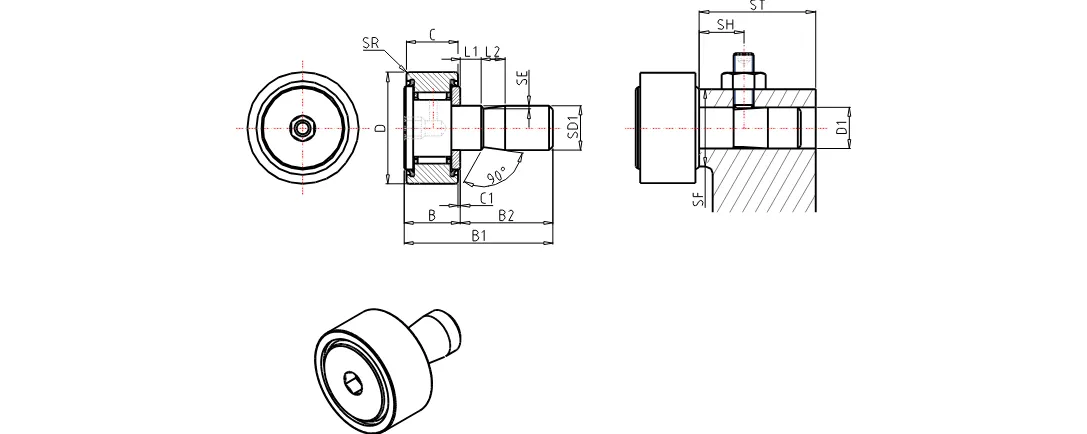

Dimension related to the installation
10
Tolerance
+0.015/0
Min.Dimension related to the installation
20
Min.Dimension related to the installation
16
Dimension related to the installation (reference)
10
Basic dynamic load rating
5430
Basic static load rating
6890
Max.Static allowable load
6890
Mass
44.0
