IKO CFSFU18B
Easy Mount Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
IKO CFSFU18B Cam Follower Product Overview
What is the CFSFU18B?
The CFSFU18B is an IKO Cam Followers series bearing listed under Brand > IKO > Cam Followers. The product data identifies it as an easy-mount metric cam follower with a caged internal structure, high carbon steel bearing material, cylindrical outer ring, shielded configuration, and hex head.

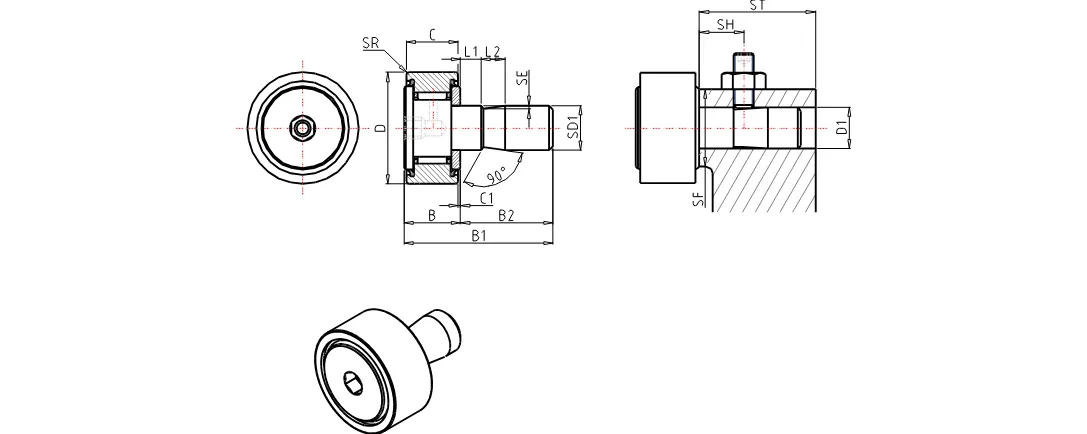

CFSFU18B Dimensions and Construction Details
What dimensions and features are specified for the CFSFU18B?
The supplied data lists order number CF-SFU-18B and the following principal dimensions:
- Stud diameter: 18 mm
- Outer diameter: 40 mm
- Width: 20 mm
- Maximum width: 21.6 mm
- Maximum total length: 46.5 mm
- Length: 24.9 mm
- H: 8 mm
- rs minimum: 1.0 mm
- Installation-related dimension: 18 mm, tolerance +0.018/0
- Minimum installation-related dimensions: 25 mm and 29 mm
- Reference installation-related dimension: 15 mm
Additional listed dimensions include 0.8, 10, 10, and 1.0. The bearing material is high carbon steel, and the internal structure is cage type.
CFSFU18B Load Rating Information
What load ratings are provided in the product data?
For the IKO CFSFU18B, the supplied data specifies a basic dynamic load rating of 14,800 and a basic static load rating of 25,200. A maximum static allowable load field is present in the source data, but no numerical value is supplied, so it should be confirmed from the original IKO specification before selection or installation.
