IKO CFSFU20
Easy Mount Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded,

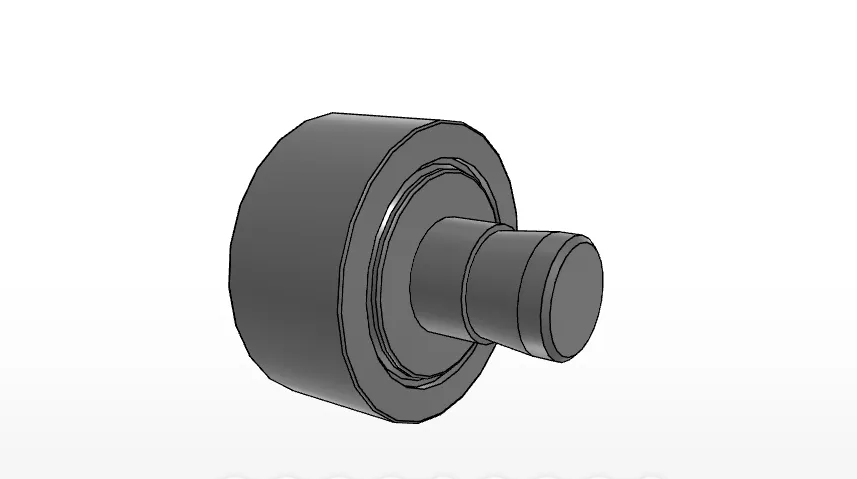

CFSFU20 IKO Cam Follower Overview
The CFSFU20 is an IKO cam follower in the Cam Followers product series. It uses a caged internal structure, high carbon steel bearing material, a cylindrical outer ring, and a shielded configuration.
What are the main identifying details of the CFSFU20?
The listed order number is CF-SFU-20, the brand is IKO, and the bearing type is Cam Followers. The product is described as an easy mount metric cam follower.

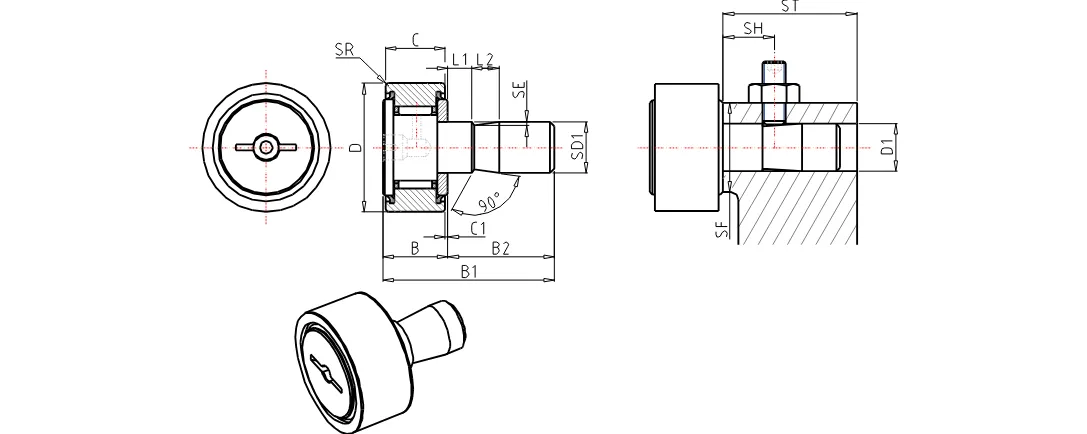

CFSFU20 Dimension and Installation Details
The CFSFU20 has a stud diameter of 20 mm, an outer diameter of 52 mm, and a width of 24 mm. Additional listed dimensions include a maximum width of 25.6 mm, maximum total length of 50.5 mm, and length of 24.9 mm.
What installation-related dimensions are provided?
- Installation dimension: 20 mm
- Minimum installation dimensions: 25 mm and 34 mm
- Reference installation dimension: 15 mm
- Tolerance: +0.021/0
- rs minimum: 1.0 mm
CFSFU20 Construction and Load Data
The CFSFU20 uses a cage type internal structure and high carbon steel bearing material. Its design includes a cylindrical outer ring and shielding. The supplied data lists a basic dynamic load rating of 20,700 N.
What structural features are included in the product data?
The data identifies the cam follower as caged, shielded, and equipped with a cylindrical outer ring. Additional listed dimensions include 0.8 mm, 10 mm, 10 mm, and 1.0 mm.
