IKO CFSFU201
Easy Mount Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded,

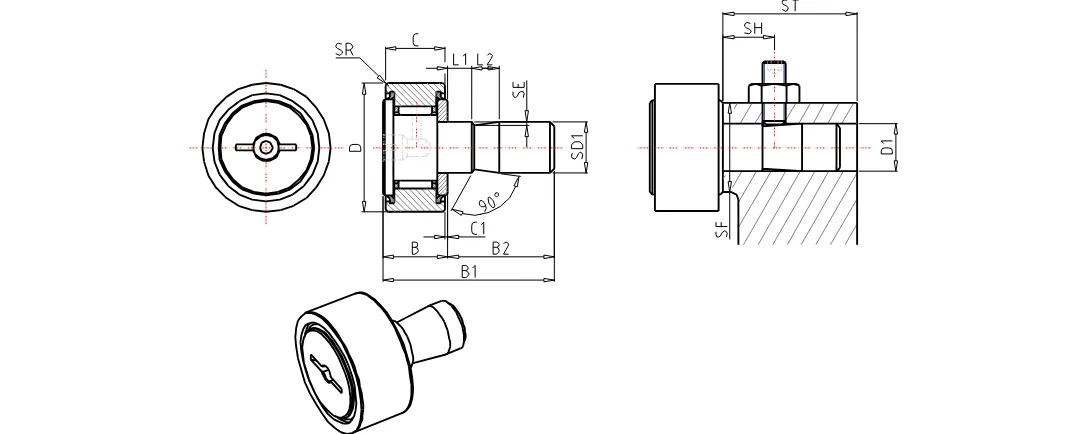

IKO CFSFU201 Cam Follower Design
What is the CFSFU201?
The IKO CFSFU201 is an easy-mount metric cam follower in the IKO Cam Followers product series. The supplied data identifies it as a caged, shielded bearing with a cylindrical outer ring and high carbon steel construction.
- Brand: IKO
- Model: CFSFU201
- Order Number: CF-SFU-20-1
- Bearing Type: Cam Followers
- Internal Structure: Cage Type
- Bearing Material: High Carbon Steel
CFSFU201 Metric Dimensions and Ratings
What dimensions are provided for the CFSFU201?
The product data lists the following dimensions for the IKO CFSFU201. Additional unnamed installation and reference dimensions are included where supplied.
- Stud diameter: 20 mm
- Outer diameter: 47 mm
- Width: 24 mm
- Maximum width: 25.6 mm
- Maximum total length: 50.5 mm
- Length: 24.9 mm
- rs min.: 1.0 mm
- Installation dimension: 20 mm, tolerance +0.021/0
- Minimum installation dimensions: 25 mm and 34 mm
- Reference installation dimension: 15 mm
- Basic dynamic load rating: 20700 N
CFSFU201 Product Identification Details
How is the CFSFU201 configured?
The supplied product information describes the CFSFU201 as a caged, shielded, easy-mount metric cam follower with a cylindrical outer ring. The bearing material is listed as high carbon steel, and the category path places the product under Brand > IKO > Cam Followers.
Where static load rating or other specification fields are incomplete in the supplied data, those details should be confirmed against the complete manufacturer or supplier documentation before selection.
