IKO CFSFU201B
Easy Mount Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,

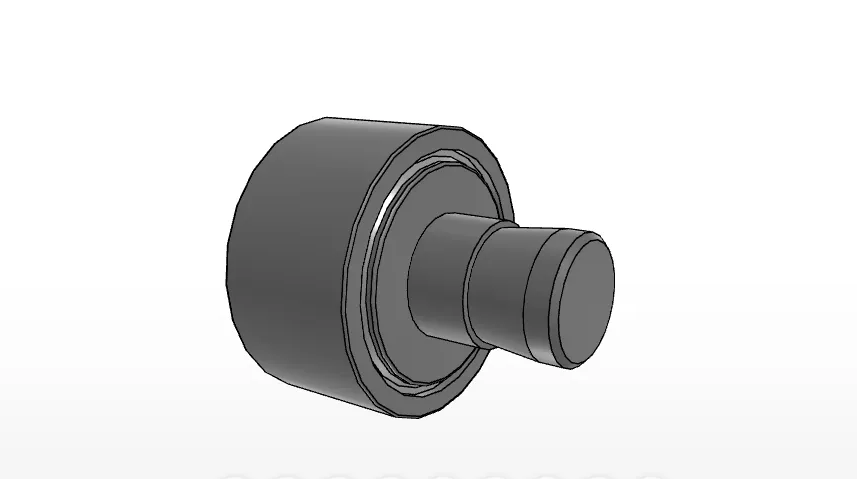

IKO CFSFU201B Cam Follower Delivers a Metric Stud-Type Design
The IKO CFSFU201B is part of the IKO Cam Followers product series and is listed under Brand > IKO > Cam Followers. The product is described as an easy-mount metric cam follower with a caged internal structure, high carbon steel construction, cylindrical outer ring, shielded arrangement, and hex head.
What identifying information is provided for this cam follower?
The model is CFSFU201B, the brand is IKO, and the order number shown in the supplied data is CF-SFU-20-1B. The bearing type is identified as a cam follower, while the series is identified as Cam Followers.
CFSFU201B Includes the Supplied Metric Dimensions for Selection

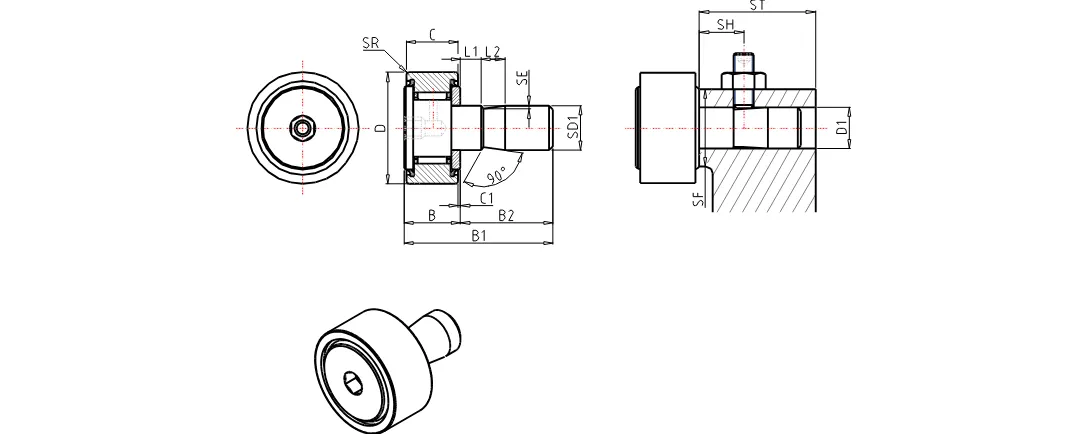

The supplied dimensional data lists a stud diameter of 20, outer diameter of 47, width of 24, maximum width of 25.6, maximum total length of 50.5, and length of 24.9. Additional dimension and installation-related values are provided as numerical entries without named units in the source data.
Which dimensional values should be reviewed for installation planning?
- Stud diameter: 20
- Outer diameter: 47
- Width: 24
- Maximum width: 25.6
- Maximum total length: 50.5
- Length: 24.9
The data also lists installation-related values including 20 with a tolerance of +0.021/0, 25, 34, a reference dimension of 15, H 8, rs min. 1.0, and 1.0. Because units are not supplied for every entry, the original specification should be checked before fitting.
The Cam Follower Uses High Carbon Steel and a Cage-Type Structure
The product data identifies the bearing material as high carbon steel and the internal structure as cage type. The design description also includes a cylindrical outer ring, shielded configuration, and hex head. The supplied load data lists a basic dynamic load rating of 20700 and a basic static load rating of 34600, with the maximum static allowable load entry incomplete in the source.
What construction and load details are available from the supplied data?
- Material: High carbon steel
- Internal structure: Cage type
- Outer ring: Cylindrical outer ring
- Configuration: Shielded with hex head
- Basic dynamic load rating: 20700
- Basic static load rating: 34600
Load-rating units and the complete maximum static allowable load value are not provided in the available product data, so these details should be confirmed against the manufacturer specification when required.
