IKO CFSFU20B
Easy Mount Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,

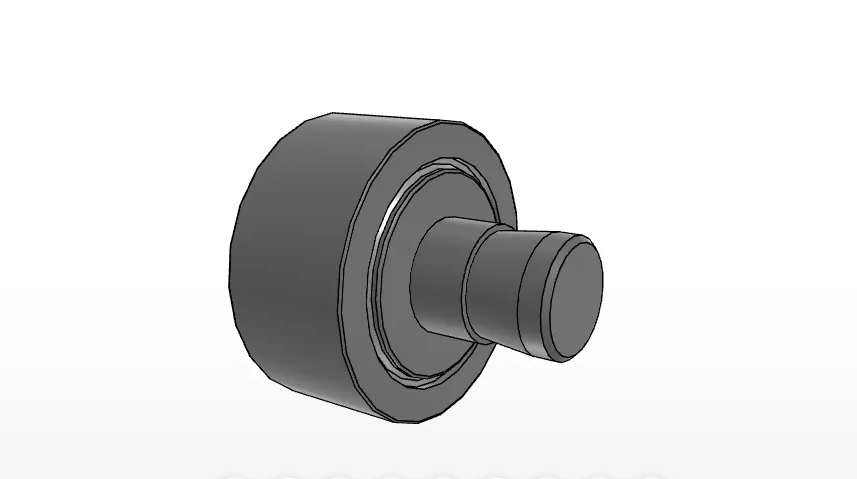

IKO CFSFU20B Cam Follower Overview
What is the CFSFU20B?
The IKO CFSFU20B is a metric cam follower in the Cam Followers product series. The supplied data identifies it as an easy-mount, caged unit with a cylindrical outer ring, shielded arrangement, hex head, and high carbon steel construction.
- Brand: IKO
- Order Number: CF-SFU-20B
- Bearing Type: Cam Followers
- Internal Structure: Cage Type
- Material: High Carbon Steel

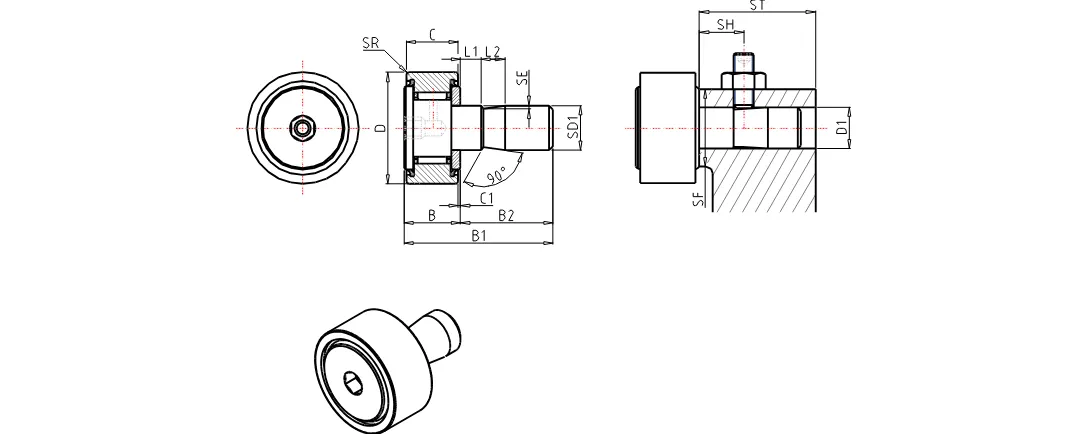

CFSFU20B Dimensions and Configuration
What dimensions are listed for the CFSFU20B?
The product data provides the following dimensional details for selection and installation review:
- Stud Diameter: 20 mm
- Outer Diameter: 52 mm
- Width: 24 mm
- Maximum Width: 25.6 mm
- Maximum Total Length: 50.5 mm
- Length: 24.9 mm
- H: 8 mm
- rs minimum: 1.0 mm
Additional installation-related values include 20 mm with a tolerance of +0.021/0, minimum dimensions of 25 mm and 34 mm, and a reference dimension of 15 mm.
CFSFU20B Load and Construction Details
What load ratings and structural features are provided?
The supplied data lists a basic dynamic load rating of 20,700 and a basic static load rating of 34,600 for the CFSFU20B. A maximum static allowable load field is present in the source data, but no value is supplied. The cam follower uses a cage-type internal structure and includes a shielded, cylindrical outer ring.
- Verify the model and order number against your requirement.
- Review the listed dimensions and installation values.
- Confirm suitability using the available load-rating data.
