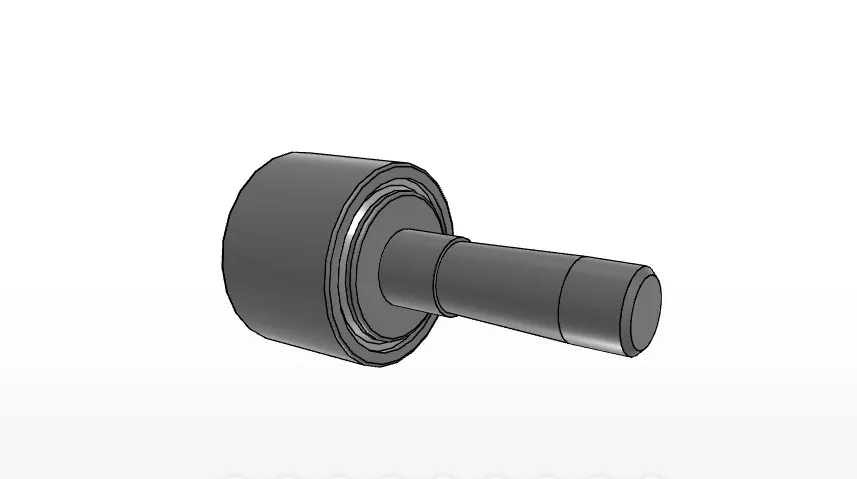

IKO CFSFU6B
Easy Mount Metric Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CF-SFU-6B

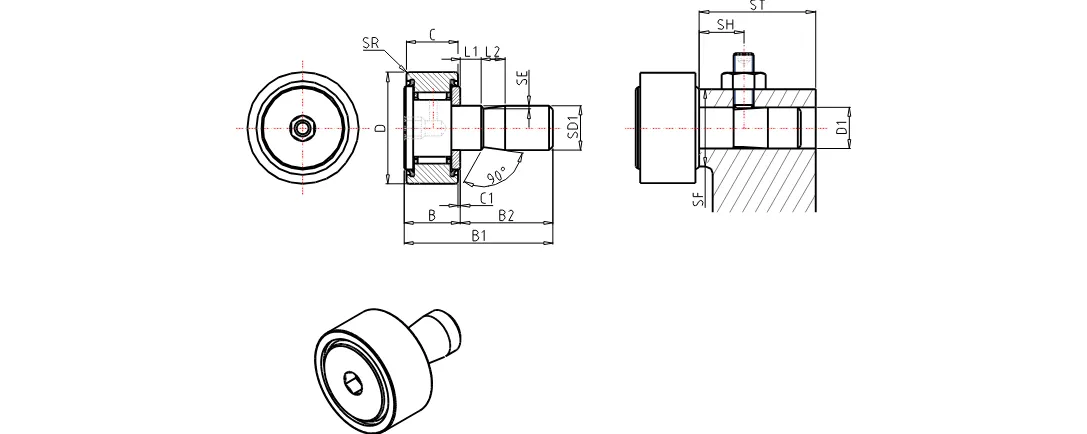

Stud Diameter
6
Outer Diameter
16
Width
11
Stud Diameter
6
Maximum width
12.2
Max.Total length
32.0
Length
19.8
Dimension
0.6
Dimension
5
Dimension
10
H
3
Dimension
0.3
rs min.
0.3
Dimension related to the installation
6
Tolerance
+0.012/0
Min.Dimension related to the installation
20
Min.Dimension related to the installation
11
Dimension related to the installation (reference)
10
Basic dynamic load rating
3660
Basic static load rating
3650
Max.Static allowable load
1950
Mass
19.5
