IKO CR12VUU
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Sealed, Screw Driver Slot,

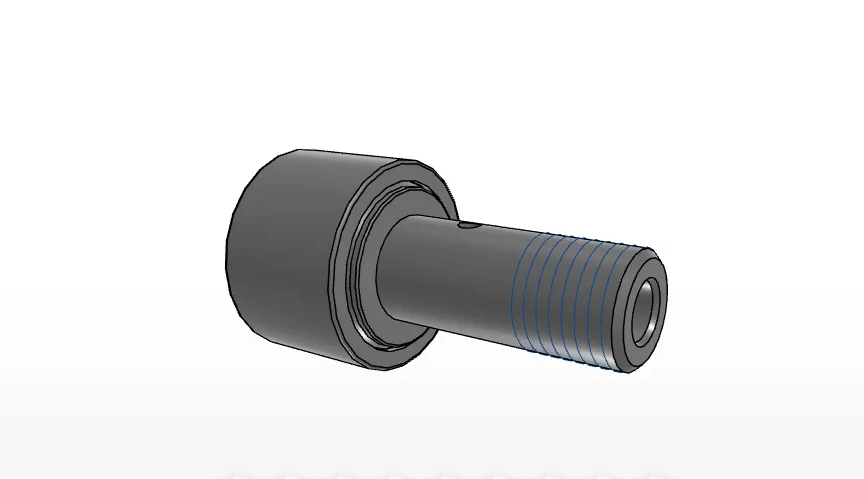

IKO CR12VUU Cam Follower for Standard Inch Series Installations
The IKO CR12VUU is part of the Cam Followers product series. Its supplied description identifies it as a standard inch series, full complement cam follower with a cylindrical outer ring, sealed construction, screw driver slot, and high carbon steel bearing material.
What bearing type and structure does the CR12VUU use?
The product data lists the bearing type as Cam Followers and the internal structure as Full Complement. The listed material is High Carbon Steel.

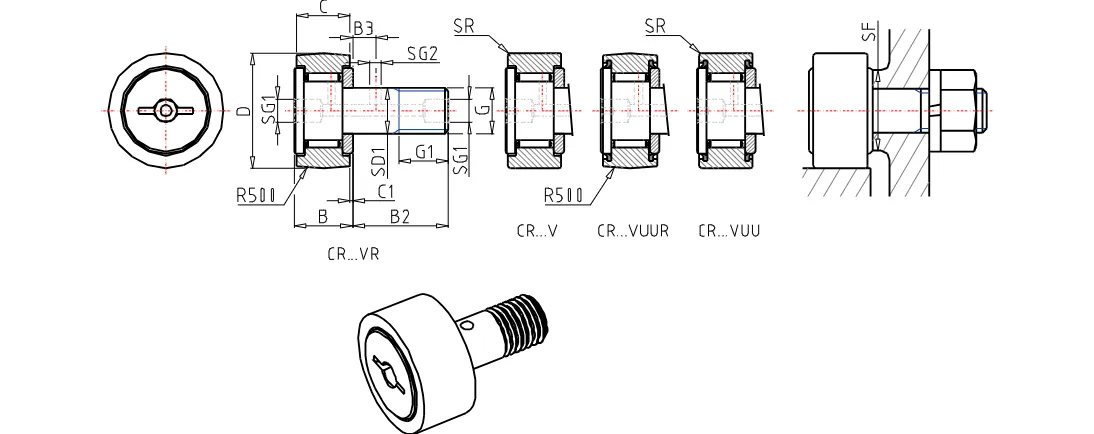

CR12VUU Dimension and Thread Specifications
The CR12VUU has a stud diameter of 9.525 mm, outer diameter of 19.050 mm, and width of 12.700 mm. The supplied thread size is 3/8-24, with additional listed dimensions including a 22.225 mm length and 14.2 mm maximum width.
- Stud diameter: 9.525 mm
- Outer diameter: 19.050 mm
- Width: 12.700 mm
- Thread: 3/8-24
- Length: 22.225 mm
- Maximum width: 14.2 mm
What installation-related values are provided for the CR12VUU?
The product data lists a minimum installation-related dimension of 13.494 mm, minimum corner radius of 0.794 mm, and a maximum tightening torque of 10.8 Nm. Additional supplied dimensional values include 9.525 mm, 6.350 mm, 4.762 mm, and 2.381 mm.
CR12VUU Load Rating and Identification Details
The supplied order number is CR12VUU, and the product is categorized under Brand > IKO > Cam Followers. The listed basic dynamic load rating is 8710 N, the basic static load rating is 12300 N, and the mass is 36 g.
- Brand: IKO
- Series: Cam Followers
- Order number: CR12VUU
- Basic dynamic load rating: 8710 N
- Basic static load rating: 12300 N
- Mass: 36 g
What configuration features are identified in the product description?
The CR12VUU description identifies sealed construction, a cylindrical outer ring, and a screw driver slot. These details are taken directly from the supplied product data.
