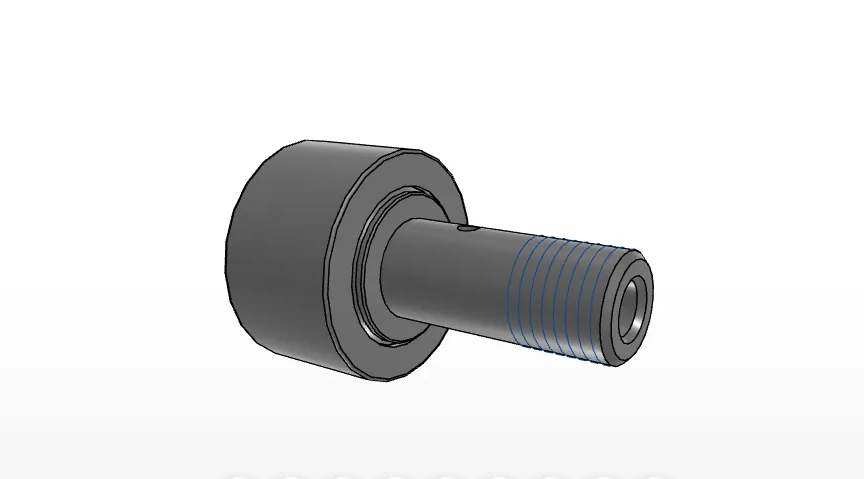

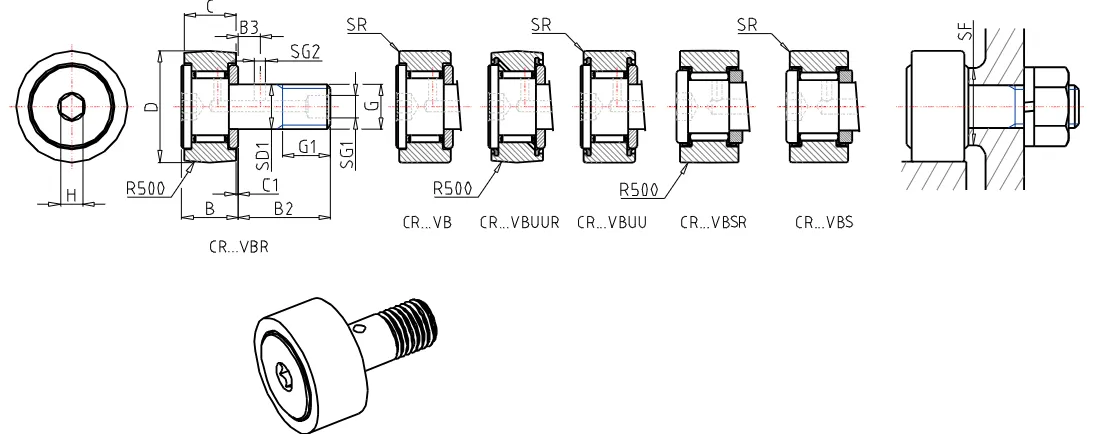

IKO CR14VBUU
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CR14VBUU
Stud Diameter
9.525
mm
Outer Diameter
22.225
mm
Width
12.700
mm
Stud Diameter
9.525
mm
Thread
3/8-24
Length
9.525
mm
Maximum width
14.2
mm
Length
22.225
mm
Dimension
6.35
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
2.381
mm
Dimension
4.762
mm
rs min.
0.794
mm
Min.Dimension related to the installation
15.081
mm
Maximum tightening torque
10.8
Nm
Basic dynamic load rating
8710
N
Basic static load rating
12300
N
Mass
47
g
