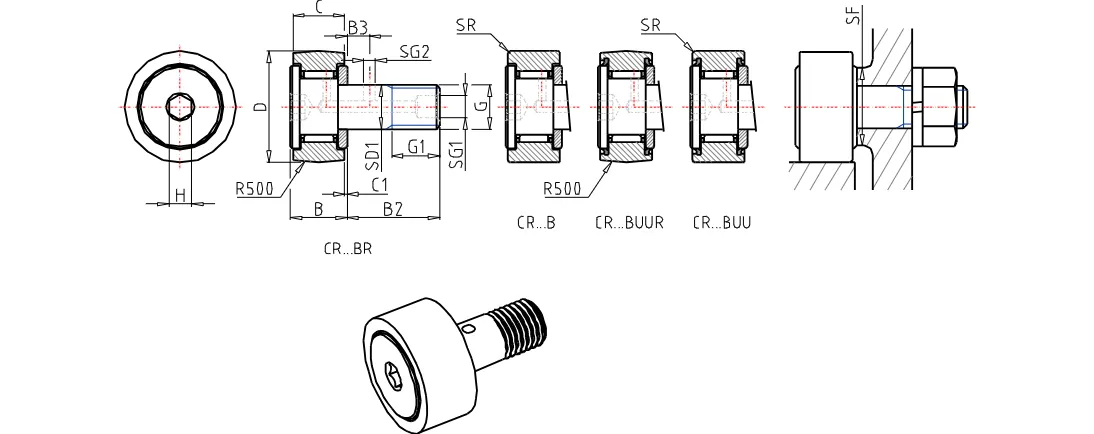

IKO CR16BUU
Standard Inch Series Cam Follower, Caged, High Carbon Steel, Cylindrical Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CR16BUU
Stud Diameter
11.112
mm
Outer Diameter
25.400
mm
Width
15.875
mm
Stud Diameter
11.112
mm
Thread
7/16-20
Length
12.700
mm
Maximum width
17.3
mm
Length
25.4
mm
Dimension
6.35
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
3.175
mm
Dimension
6.350
mm
rs min.
1.191
mm
Min.Dimension related to the installation
17.859
mm
Maximum tightening torque
17.4
Nm
Basic dynamic load rating
8810
N
Basic static load rating
10800
N
Mass
73
g
