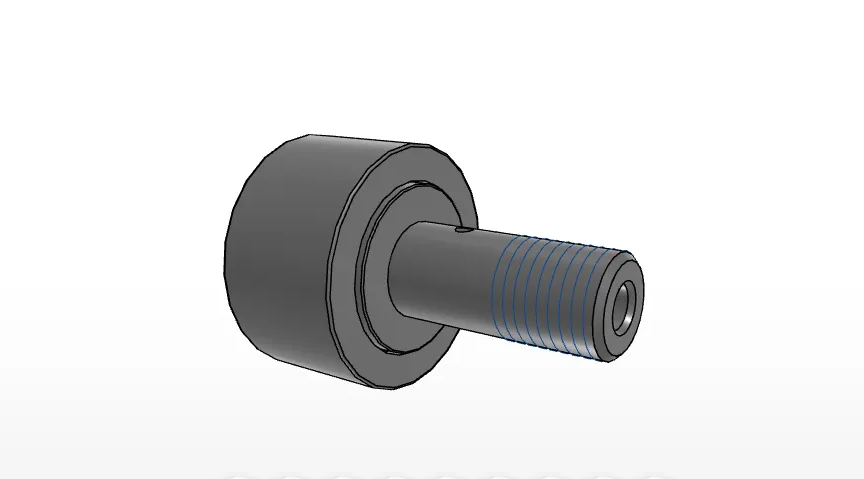

IKO CR18VB
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CR18VB
Stud Diameter
11.112
mm
Outer Diameter
28.575
mm
Width
15.875
mm
Stud Diameter
11.112
mm
Thread
7/16-20
Length
12.700
mm
Maximum width
17.3
mm
Length
25.400
mm
Dimension
6.35
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
3.175
mm
Dimension
6.350
mm
rs min.
1.588
mm
Min.Dimension related to the installation
19.050
mm
Maximum tightening torque
17.4
Nm
Basic dynamic load rating
13100
N
Basic static load rating
22700
N
Mass
85
g
