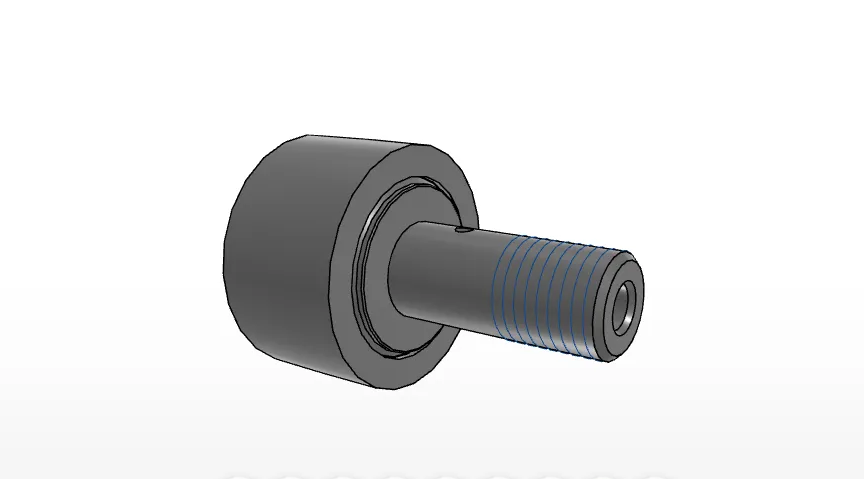

IKO CR18VBUUR
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Sealed, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CR18VBUUR
Stud Diameter
11.112
mm
Outer Diameter
28.575
mm
Width
15.875
mm
Stud Diameter
11.112
mm
Thread
7/16-20
Length
12.700
mm
Maximum width
17.3
mm
Length
25.400
mm
Dimension
6.35
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
3.175
mm
Dimension
6.350
mm
rs min.
-
mm
Min.Dimension related to the installation
19.050
mm
Maximum tightening torque
17.4
Nm
Basic dynamic load rating
13100
N
Basic static load rating
22700
N
Mass
85
g
