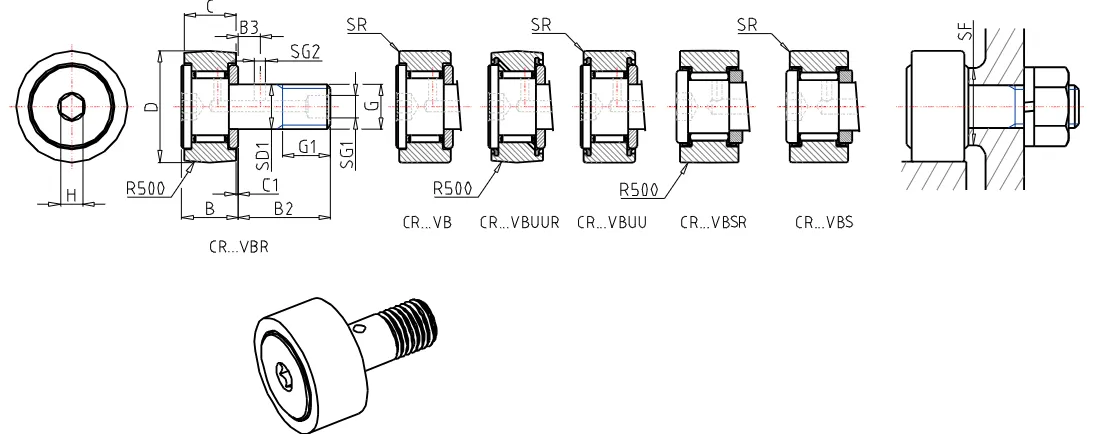

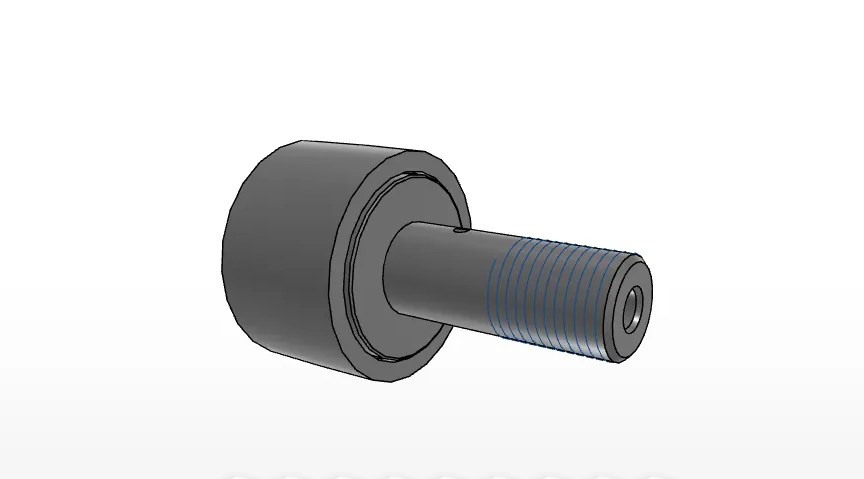

IKO CR20VBR
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CR20VBR
Stud Diameter
12.700
mm
Outer Diameter
31.750
mm
Width
19.050
mm
Stud Diameter
12.700
mm
Thread
1/2-20
Length
15.875
mm
Maximum width
20.4
mm
Length
31.750
mm
Dimension
7.938
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
3.175
mm
Dimension
6.350
mm
rs min.
-
mm
Min.Dimension related to the installation
21.828
mm
Maximum tightening torque
27.7
Nm
Basic dynamic load rating
23600
N
Basic static load rating
31700
N
Mass
137
g
