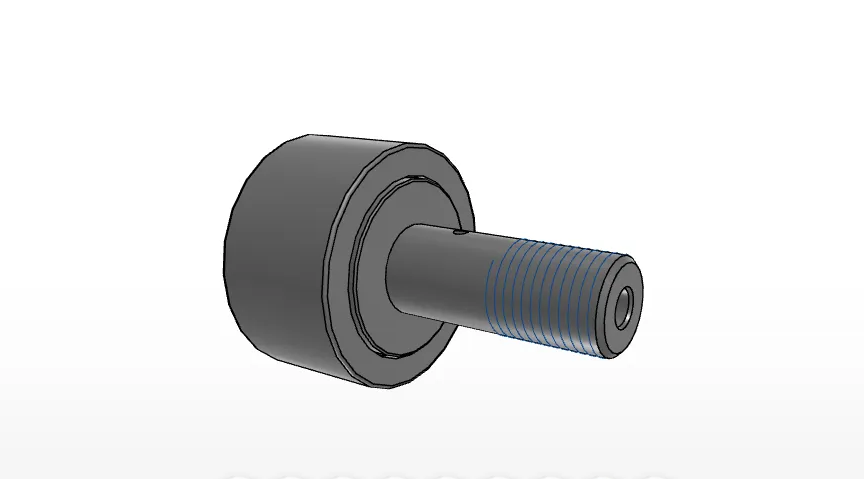

IKO CR22V
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Cylindrical Outer Ring, Shielded, Screw Driver Slot,
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CR22V
Stud Diameter
12.700
mm
Outer Diameter
34.925
mm
Width
19.050
mm
Stud Diameter
12.700
mm
Thread
1/2-20
Length
15.875
mm
Maximum width
20.4
mm
Length
31.750
mm
Dimension
7.938
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
3.175
mm
rs min.
1.588
mm
Min.Dimension related to the installation
21.828
mm
Maximum tightening torque
27.7
Nm
Basic dynamic load rating
23600
N
Basic static load rating
31700
N
Mass
160
g
