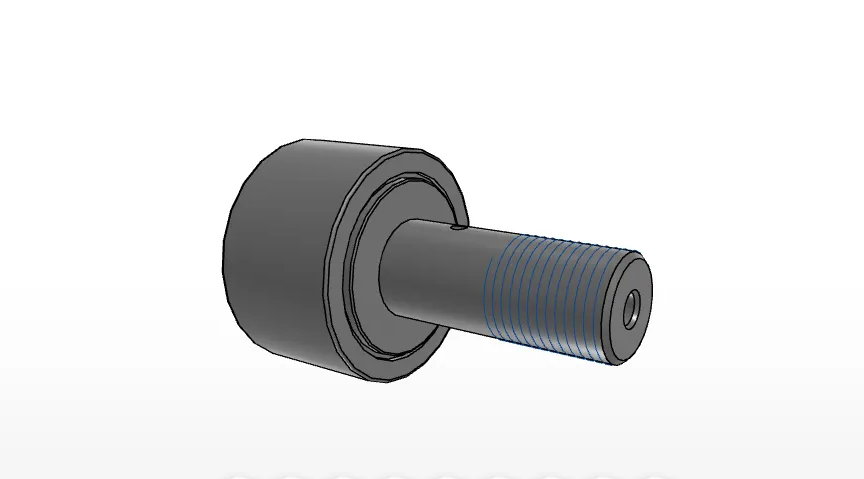

IKO CR24VBS
Inch Series Cam Followers, Full complement, High Carbon Steel, Cylindrical, Sealed with integrated thrust washer, Hex Head
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
CR24VBS
Stud Diameter
15.875
mm
Outer Diameter
38.100
mm
Width
22.225
mm
Stud Diameter
15.875
mm
Thread
5/8-18
Length
19.050
mm
Maximum width
23.6
mm
Length
38.100
mm
Dimension
9.525
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
3.969
mm
Dimension
7.938
mm
rs min.
1.588
mm
Min.Dimension related to the installation
26.196
mm
Maximum tightening torque
55.7
Nm
Basic dynamic load rating
26400
N
Basic static load rating
36900
N
Mass
230
g
