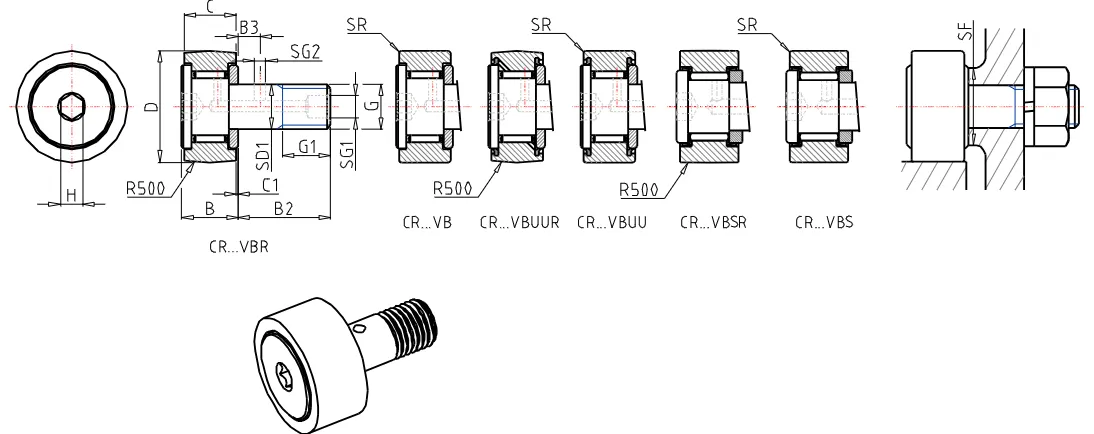

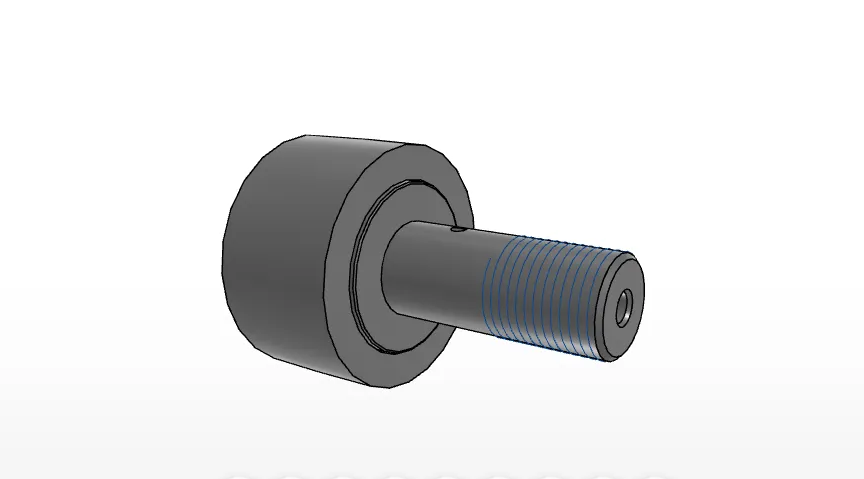

IKO CR26VBR
Cam Followers
Standard Inch Series Cam Follower, Full Complement, High Carbon Steel, Crowned Outer Ring, Shielded, Hex Head,
(BRAND):IKO
(Availability):In Stock
(EMAIL):info@noksbearings.com
REQUEST A QUOTE
Detailed data of Product
similar to product
Detailed data of
CR26VBR
Cam Followers
Order Number
CR26VBR
Stud Diameter
15.875
mm
Outer Diameter
41.275
mm
Width
22.225
mm
Stud Diameter
15.875
mm
Thread
5/8-18
Length
19.050
mm
Maximum width
23.6
mm
Length
38.100
mm
Dimension
9.525
mm
Dimension
0.794
mm
Diameter
4.762
mm
Diameter
3.969
mm
Dimension
7.938
mm
rs min.
-
mm
Min.Dimension related to the installation
26.196
mm
Maximum tightening torque
55.7
Nm
Basic dynamic load rating
28200
N
Basic static load rating
40100
N
Mass
265
g
